Siemens GMA226.1U
SKU: CS280643MPN: GMA226.1UUPC/EAN: 804766000355

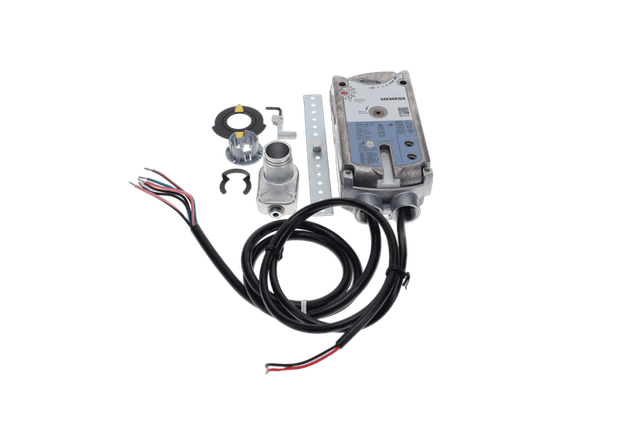

OpenAir Damper Actuator, SR, 62 lb-in
$268.76
UnitAvailable on backorder
Product Details
OpenAir GMA Series Electric Damper Actuator, spring return, 62 lb-in
Attributes
| Actuation Style | Rotary |
| Actuator Type | Spring return |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | Yes |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 2-position |
| Fail Safe | Yes |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
| Operating Voltage | 120 VAC |
| Plenum Or Standard Rating | Standard |
| Position Feedback | No |
| Positioning Time | Open:90 s;Close:15 s |
| Power Consumption | Running and Holding: 7 VA / 5 W |
| Supply Voltage | 120 VAC |
| Torque | 62 lb-in |
Specifications
| SKU | CS280643 |
|---|---|
| MPN | GMA226.1U |
| UPC/EAN | 804766000355 |
