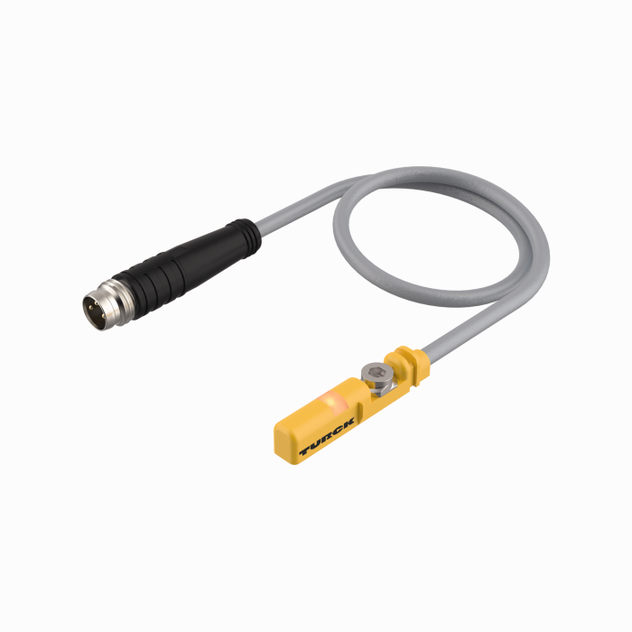

Turck BIM-UNT-AP6X-0.3-PSG3S
SKU: CS2708281MPN: BIM-UNT-AP6X-0.3-PSG3SAlternate Part #: 4685722UPC/EAN: 4047101159967
4685722 - TRANS., RECT., DC, PIGTAIL M8
$120.36
Unit8 in stock
Product Details
Magnetic Field Sensor
For Pneumatic Cylinders
- For T-groove cylinders without mounting accessories
- Optional accessories for mounting on other cylinder designs
- One-hand mounting possible
- Stable mounting
- Magneto-resistive sensor
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end, Ø 8 mm
Attributes
| Ambient Temperature | -25…+70 °C |

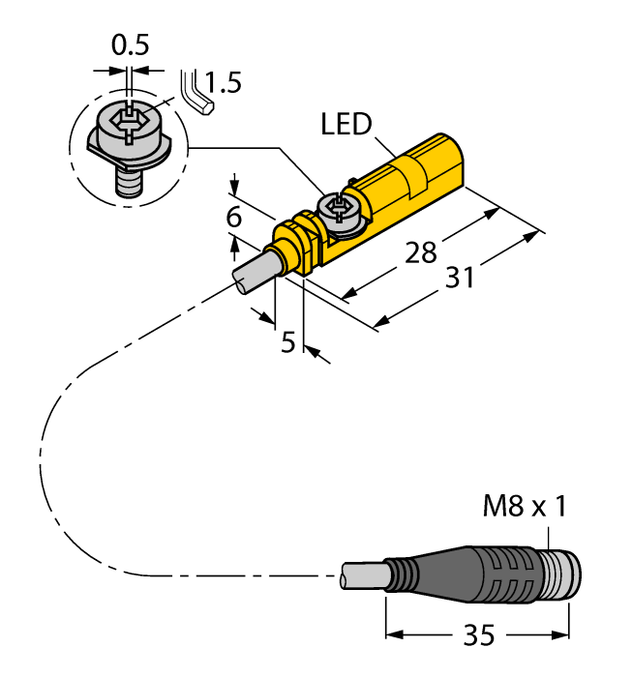

| Construction Size | 28 x 5 x 6 mm, UNT |
| Customs Tariff Number | 85365019900.0000 |
| Cylindrical Design | Dovetail groove cylinder, T-groove cylinder, Round cylinder, Tie-rod cylinder |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable with connector, Ø 8 mm |
| Housing Material | Plastic, PP |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
Specifications
| SKU | CS2708281 |
|---|---|
| MPN | BIM-UNT-AP6X-0.3-PSG3S |
| Alternate Part # | 4685722 |
| UPC/EAN | 4047101159967 |
