Schneider Electric VS-7323-593-4-11

SKU: CS270466MPN: VS-7323-593-4-11UPC/EAN: 711426015881

VB: 2 in, 3W Div, Globe, NPT, UO, BR, 40 cv, 250 PSI, Act (MS51-7203): Elec, Prop, SR, NC, 24 VAC/VDC, App, 220 lbf, Linear, N2

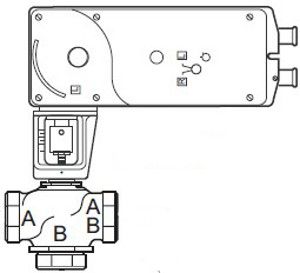

Schneider Electric VS-7323-593-4-09, VS-7323-593-4-10, VS-7323-593-4-11
$1,207.66
Unit
Available on backorder
remove
add

Product Details

Valve Assembly:

  • Body Size: 2 in
  • Configuration: 3-Way Diverting
  • Type: Globe
  • Connection: NPT
  • Stem Flow Action: Stem up flow B to AB
  • Material Trim: Brass
  • Flow Coefficient: 40 cv
  • Close-Off Pressure: 250 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Up/Retract A closed
  • Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
  • Leads and Connections: 3 ft Appliance
  • Force: 220 lbf
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 2

Assembly Components:

  • Valve Body: VB-7323-0-4-11
  • Valve Range: Venta
  • Valve Linkage: None, tool-less connection
  • Actuator: MS51-7203
  • Actuator Range: SmartX Actuator

Product Alert: Not for use with steam

Attributes

Us Rated Supply Voltage 22…30 V DC 24 V AC/DC
Actuator linear
Ambient Air Temperature For Operation -17.7-60 °C
Ambient Air Temperature For Storage -40-71 °C
Analogue Input Range 2…10 V DC 4…20 mA DC
Body Material bronze
Control Type automatic reset
Current Consumption 290 mA
Electrical Insulation Class class II
Force Lbf 220 lbf
Force N 979 N
Hold In Power Consumption In W 2.8-2.8 W
Ip Degree Of Protection IP11
Material die cast aluminium: housing
Motor Type brushless DC motor
Operating Fluid Temperature -7-138 °C
Power Consumption In Va 9.8 VA AC
Power Consumption In W 7.4 W
Product Destination globe valve
Product Or Component Type valve-actuator assembly
Relative Humidity 15-95 % non-condensing
Seat Leakage Port A: Class III (0.1 %)
Seat Material Port A: bronze Port B: bronze
Seating Seal Material Port A:metal to metal Port B:metal to metal
Switch Function No
Targeted Region North America.
Taxoclass Id PTC_D54038_XXX

Specifications

SKUCS270466
MPNVS-7323-593-4-11
UPC/EAN711426015881
