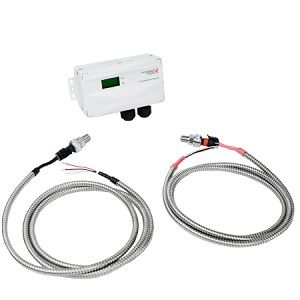

Veris PWLN04S
SKU: CS2543400MPN: PWLN04S
Differential Air Pressure Trans: For the monitoring of air ducts, filters and fans, SPD310-100/300/500/1000Pa
$647.53
UnitAvailable on backorder
Product Details
3-wire Differential Pressure Transducer , Wet Media, w/LCD Display, NIST, 0-100psig - The PW Series wet/wet pressure transducers incorporate a highly accurate, stable sensor, which is microprocessor profiled, for exceptional accuracy and reliability. Designed for ease of use and to provide exceptional installation savings, the PW Series is ideal for measuring pressure across pumps, filters, heat exchanges, compressors and other non-corrosive wet media applications.
Attributes
| Analogue Output Type | 4…20 mA; 0…5 V DC; 0…10 V DC |
| IP Degree of Protection | IP65 |
| Product or Component Type | sensor |
| Ambient Air Temperature for Operation | -10-50 °C |
| Burst Pressure | 500 psig (34 bar) |
| Product Certifications | CE |
| Controlled Fluid | water |
| Fitting Size | ⅛” NPT |
| Fitting Type | female |
| Location | plant room |
| Pressure Measurement Accuracy | range A/B: ± 1 % FS, range C: ± 1.5 % FS, range D: ± 2 % FS |
| Pressure Measurement Range | 0…10 psi (0…0.7 bar); 0…20 psi (0…1.4 bar); 0…50 psi (0…3.5 bar); 0…100 psi (0…7 bar) |
| Wiring Technique | 3-wire |
| Type of Measurement | differential pressure |
| Calibration Certificate | NIST |
| Device Application | pump and compressor differential pressure; chiller differential pressure monitoring |
| Mounting Support | panel |
| Standards | EN 61000-6-1 |
| Relative Humidity | 0-90 % RH, non-condensing |
| (Us) Rated Supply Voltage | 15…30 V DC; 24 V AC |
| Display Size | 17 x 36 mm |
| Local Signalling | red/green LED |
| Max Current Draw | 125 mA DC; 280 mA AC |
Specifications
| SKU | CS2543400 |
|---|---|
| MPN | PWLN04S |
