Square D XY2CH33010H7

Name: Square D XY2CH33010H7
Brand: Square D
SKU: CS2540221
Availability: OutOfStock

SKU: CS2540221MPN: XY2CH33010H7Alternate Part #: SQD-XY2CH33010H7

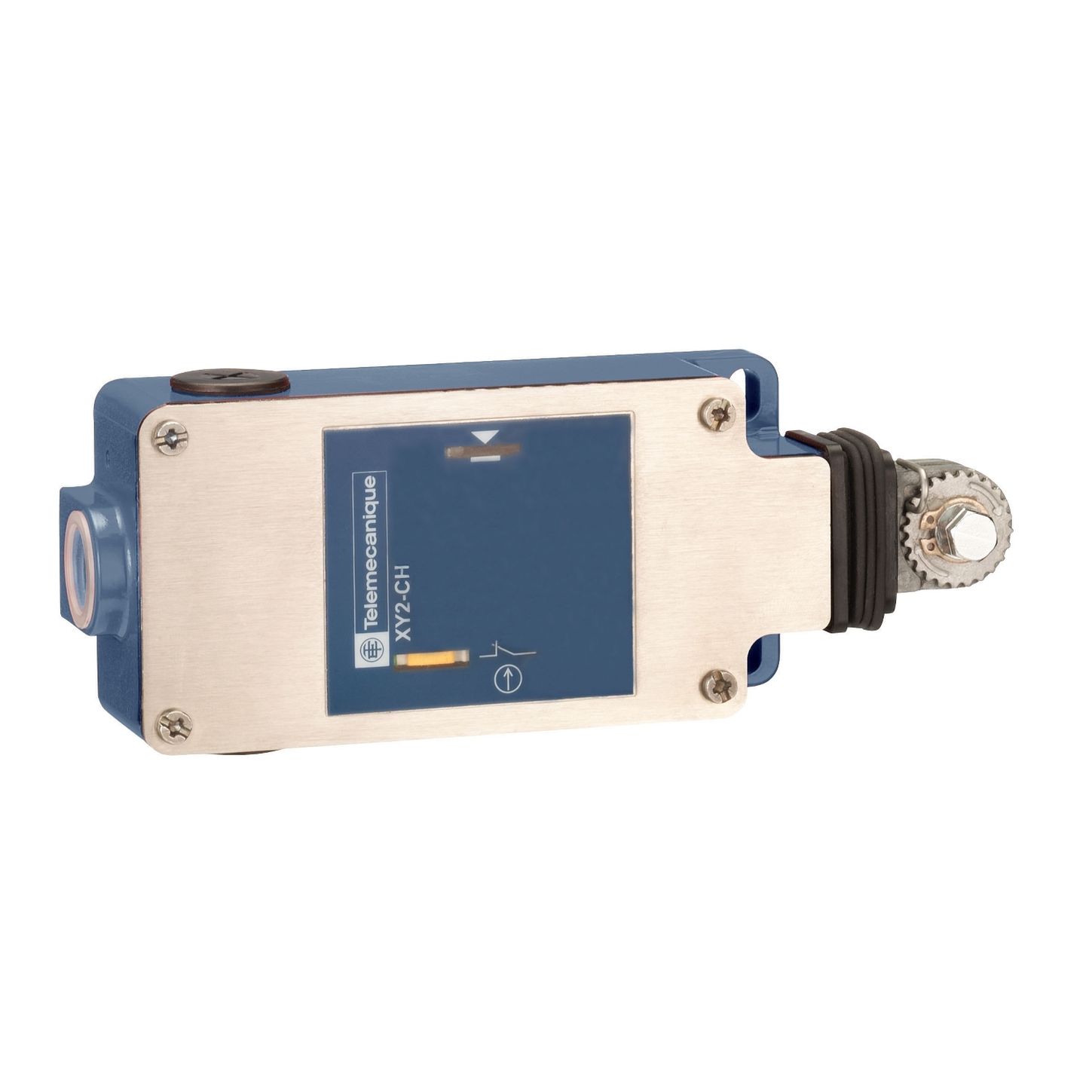

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable 240 VAC 10amp XY2C +options

Product Details

CABLE PULL SWITCH 240VAC 10AMP XY2C +OPTIONS

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	zamak
Compatibility Code	XY2CE
Contact Operation	snap action
Contacts Type And Composition	1 NC + 1 NO
Cover Material	stainless steel
Device Short Name	XY2CE
Distance Between Cable Supports	5-5 m
Marking	CE
Marking 1	CE
Mechanical Durability	800000 cycles
Number Of Cables	1.0000
Product Or Component Type	latching emergency stop rope pull switch
Protective Treatment	TC
Range Of Product	Telemecanique Emergency stop rope pull switches XY2C
Reset	by booted push-button
Standards	machinery directive 2006/42/EC# #EN/ISO 13850# #EN/IEC 60947-5-5# #EN/IEC 60947-5-1# #work equipment directive 2009/104/EC# #CSA C22.2 No 14
Terminals Description Iso N 1	(21-22)NC# #(13-14)NO
Tightening Torque	0.8-1.2 N.m
Tightening Torque 1	0.8-1.2 N.m
Tightening Torque 2	0.8-1.2 N.m
Trigger Cable Anchor Point	RH or LH side
