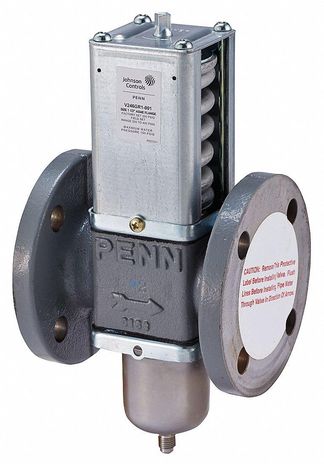

Johnson Controls V246GR1-001C

WATERVALVE 1 ½IN FLG DA; HP REFRIG; 2-WAY WATER REG VLV; 1-½” ASME FLANGE; DA COMMERCIAL

The V246 Series 2-Way Pressure-Actuated Water-Regulating Valves for High-Pressure Refrigerants come in two types of control action: direct acting or reverse acting. V246 valves regulate water flow to control refrigerant head pressure in systems with water-cooled condensers.

The V246 Series Valves are available in ⅜ in. through 1-½ in. sizes and have a maximum allowable water pressure of 150 psi (10.3 bar). V246 valves have an adjustable opening point in a refrigerant pressure range of 200 to 400 psi (13.8 to 27.6 bar). V246 valves may be used with standard non-corrosive refrigerants.

Maritime models, which have nickel copper (Monel®) internal parts, are available for applications where the media may be corrosive to the internal parts.

Features:

• No Close Fitting or Sliding Parts in Water Passages
• Accessible Range Spring
• Take-Apart Construction
• Pressure-Balanced Design
• Corrosion-Resistant Material for Internal Parts
