Johnson Controls M9000-560

M9000-560 DIRECT MOUNT; BALL VALVE LINKAGE KIT FOR APPLYING M9104 M9203 M9208 SERIES ACTUATORS

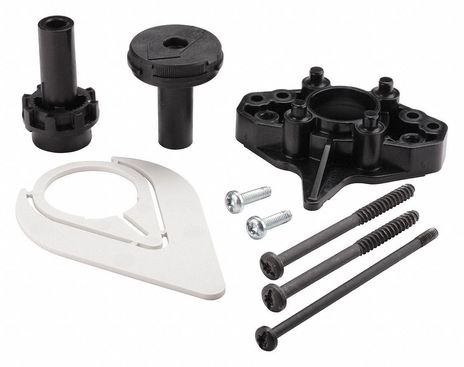

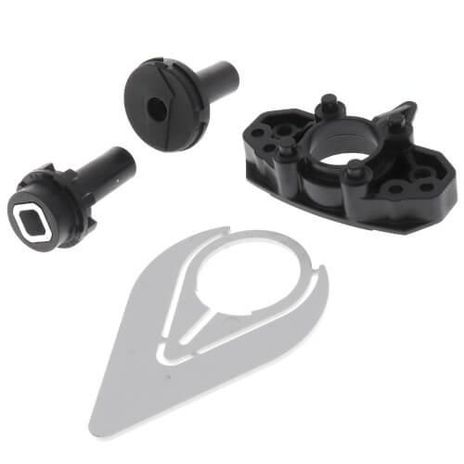

The M9000-560 Ball Valve Linkage Kit (Figure 1) is designed to mount a M9203 or M9208 Series actuator to a VG1000 Series Ball Valve. The M9000-561 Thermal Barrier (Figure 2), when used with the M9000-560 Linkage Kit, allows the valve assembly to be used for fluid temperatures up to 284°F (140°C), or 15 psi (105 kPa) saturated steam.
