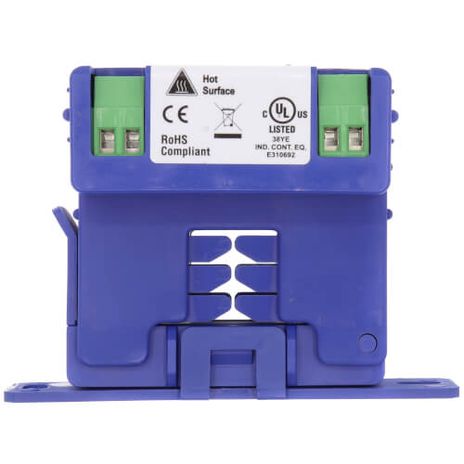

Johnson Controls CSD-CA1G1-1

SUGGGESTED REPLACEMENT CSDSC-C50100L1

The Current Switch Device (CSD) Series of digital output current switches are non-intrusive devices designed to detect current flowing through a cable or wire. A cost-effective solution for monitoring on and off status or proof of operation, these units are ideal for monitoring very small current loads on motors, driving fans and blowers, pumps, heating coils, and lighting

Specifications:

• Actuation Coil: 20–30 VAC/VDC 40–85 mA Maximum
• Split Core: Yes
• Window Diameter: 0.7”
• Output: 30 VDC
• Current Range: 0.25 to 200 Amps
• Frequency Range: 50 to 60 Hertz
