Turck RKM 30-2M/S90-SP
SKU: CS248082MPN: RKM 30-2M/S90-SPAlternate Part #: U2135
U2135 - CORD,⅞IN.MINIFAST
$71.18
UnitAvailable on backorder
Product Details

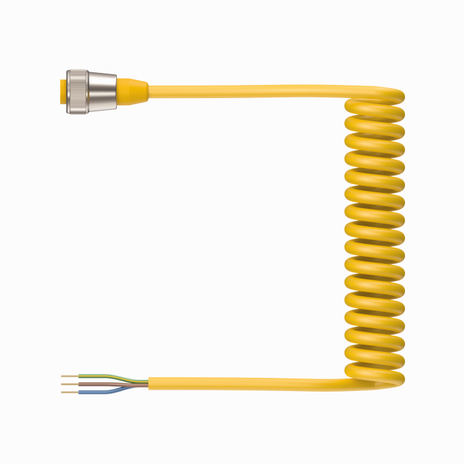

Power Cordset
Connection Cable
- ⅞” Female, Straight, 3-pin
- General Purpose Cable
- Yellow TPU jacket, 3X18 AWG
Attributes
| Application | Power (>11 Amps) |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, RoHS |
| Cable Diameter | Ø 7.24 mm |
| Cable Jacket | TPU, Yellow |
| Connector Body | Plastic, TPU, Yellow |
| Coupling Nut | Brass, CuZn, Nickel-plated |
| Current | 9 A |
| Customs Tariff Number | 85444290900.0000 |
| Design | Single-ended |
| Number Of Conductors | 3.0000 |
| Number Of Contacts | 3 |
| Protection Class When Coupled | IP67, IP68, IP69, IP69K |
| Voltage | 300 V |
Specifications
| SKU | CS248082 |
|---|---|
| MPN | RKM 30-2M/S90-SP |
| Alternate Part # | U2135 |
