Turck BTS-DSU35-EBE3
SKU: CS2475399MPN: BTS-DSU35-EBE3Alternate Part #: 6901070UPC/EAN: 4047101198669
6901070 - FUNCTIONAL
$54.63
UnitAvailable on backorder
Product Details
Accessories for Inductive Sensors
Actuator (Puck)
For DSU35 Dual Sensors
- End position damped
- 6.2 mm stainless steel target to compensate larger tolerances (e.g. caused by rubber seals)
- End position (open/closed) freely adjustable in a range of 360°, in steps of 4°
- Displays rotatable by 90 °
- Scale division

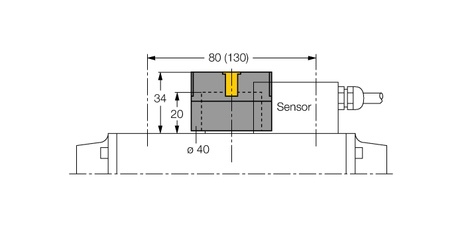

- Hole pattern on flange surface: 30 x 80 mm (30 x 130 mm)
- Connection shaft (shaft extension) height: 20 mm/Ø: max. 30 mm
- Includes mounting screws for sensor and actuator
- Maximum slide ring diameter: 34 mm
Attributes
| Accessory Type | Actuator (puck) |
| Construction Size | 36 mm |
| Customs Tariff Number | 85389099990.0000 |
| Ecl Ss Code V5 1 4 | 27279201 -/- Connectivity (accessories sensors) |
| For Use With | Dual sensors |
| Housing Diameter | Ø 40 mm |
| Housing Material | Plastic, ABS |
Specifications
| SKU | CS2475399 |
|---|---|
| MPN | BTS-DSU35-EBE3 |
| Alternate Part # | 6901070 |
| UPC/EAN | 4047101198669 |
You may also like
Turck BTS-DSU35-EBE3-US
$52.82UnitTurck BTS-DSU35-EBE3-US2
$52.82Unit
Turck BTS-DSU35-EBE2
$91.11Unit
Turck BTS-DSU35-EU2
$46.17Unit
Turck BTS-DSU35-EB1
$34.44UnitTurck BTS-DSU35-EU1
$54.26Unit
Turck BTS-DSU35-DOME COVER-US
$36.74Unit

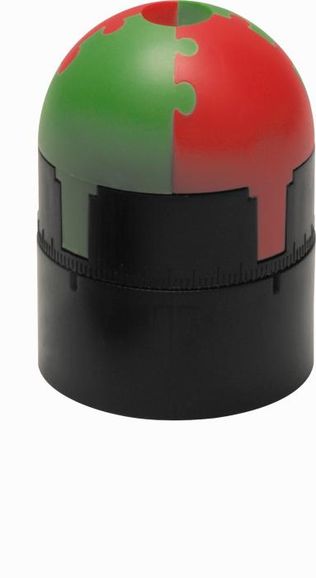

Turck BTS-DSU35-DOME RD/GN
$26.47Unit

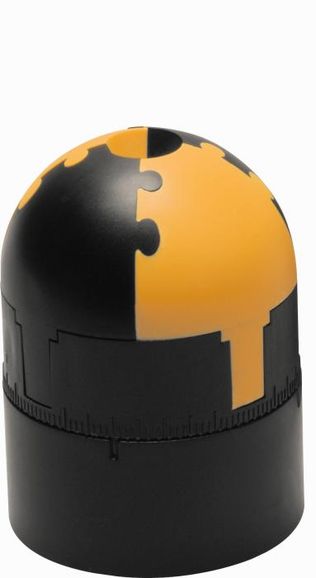

Turck BTS-DSU35-DOME YE/BK
