All ProductsTurck

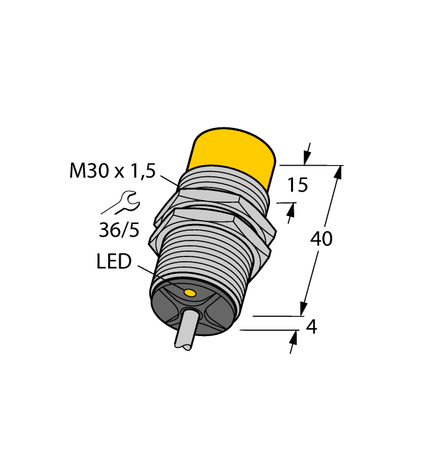

Turck NI15-G30-Y1X

SKU: CS2456676MPN: NI15-G30-Y1XAlternate Part #: 40201UPC/EAN: 4047101091366

40201 - FERRITE, BARREL, NAMUR, CABLE

Turck NI15-G30-Y0X, NI15-G30-Y0X 7M, NI15-G30-Y1X, NI15-G30K-AP6X, NI30-G30K-AP6X, NI30-GT30K-AP6X
$128.17
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

  • Threaded barrel, M30 x 1.5
  • Chrome-plated brass
  • DC 2-wire, nom. 8.2 VDC
  • Output acc. to DIN EN 60947-5-6 (NAMUR)
  • Cable connection
  • ATEX category II 1 G, Ex zone 0
  • ATEX category II 1 D, Ex zone 20
  • SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
  • SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1

Attributes

Ambient Temperature -25…+70 °C
Approvals ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
Construction Size M30 x 1.5
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Cable
Housing Material Metal, CuZn, Chrome-plated
Mounting Non-flush
Output Function NAMUR
Protection Class IP67
Rated Switching Distance 15 mm
Switching Frequency 0.20 kHz

Specifications

SKUCS2456676
MPNNI15-G30-Y1X
Alternate Part #40201
UPC/EAN4047101091366
