Turck BI10-M30-AD4X-H1141
SKU: CS2451913MPN: BI10-M30-AD4X-H1141Alternate Part #: 44175UPC/EAN: 4047101140415
44175 - FERRITE, BARREL, DC, CON. M12
$149.96
Unit3 in stock
Product Details

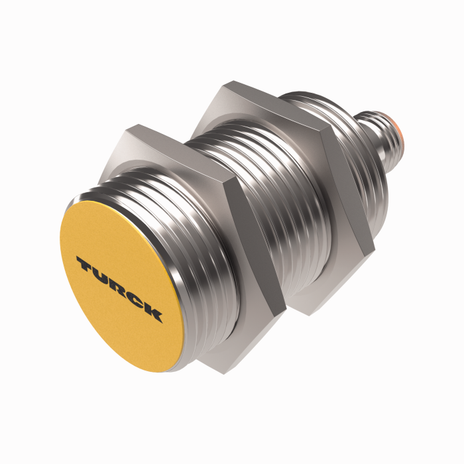

Inductive Sensor

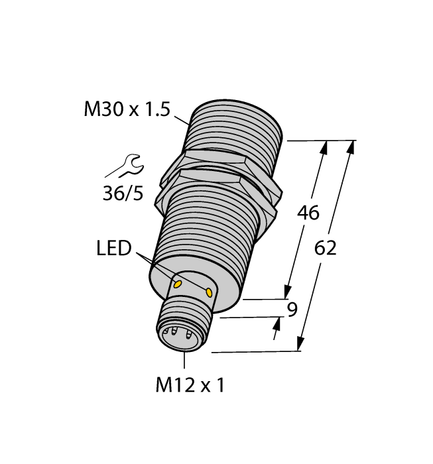

- M30 × 1.5 threaded tube
- Chrome-plated brass
- DC 2-wire, 10…65 VDC
- NO contact
- M12 x 1 male connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | M30 x 1.5 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, CuZn, Chrome-plated |
| Mounting | Flush |
| Operating Voltage | 10…65 VDC |
| Output Function | NO contact, 2-wire |
| Protection Class | IP67 |
| Rated Switching Distance | 10 mm |
| Switching Frequency | 0.50 kHz |
Specifications
| SKU | CS2451913 |
|---|---|
| MPN | BI10-M30-AD4X-H1141 |
| Alternate Part # | 44175 |
| UPC/EAN | 4047101140415 |
