Siemens 599-03185
SKU: CS24478MPN: 599-03185UPC/EAN: 804766016998

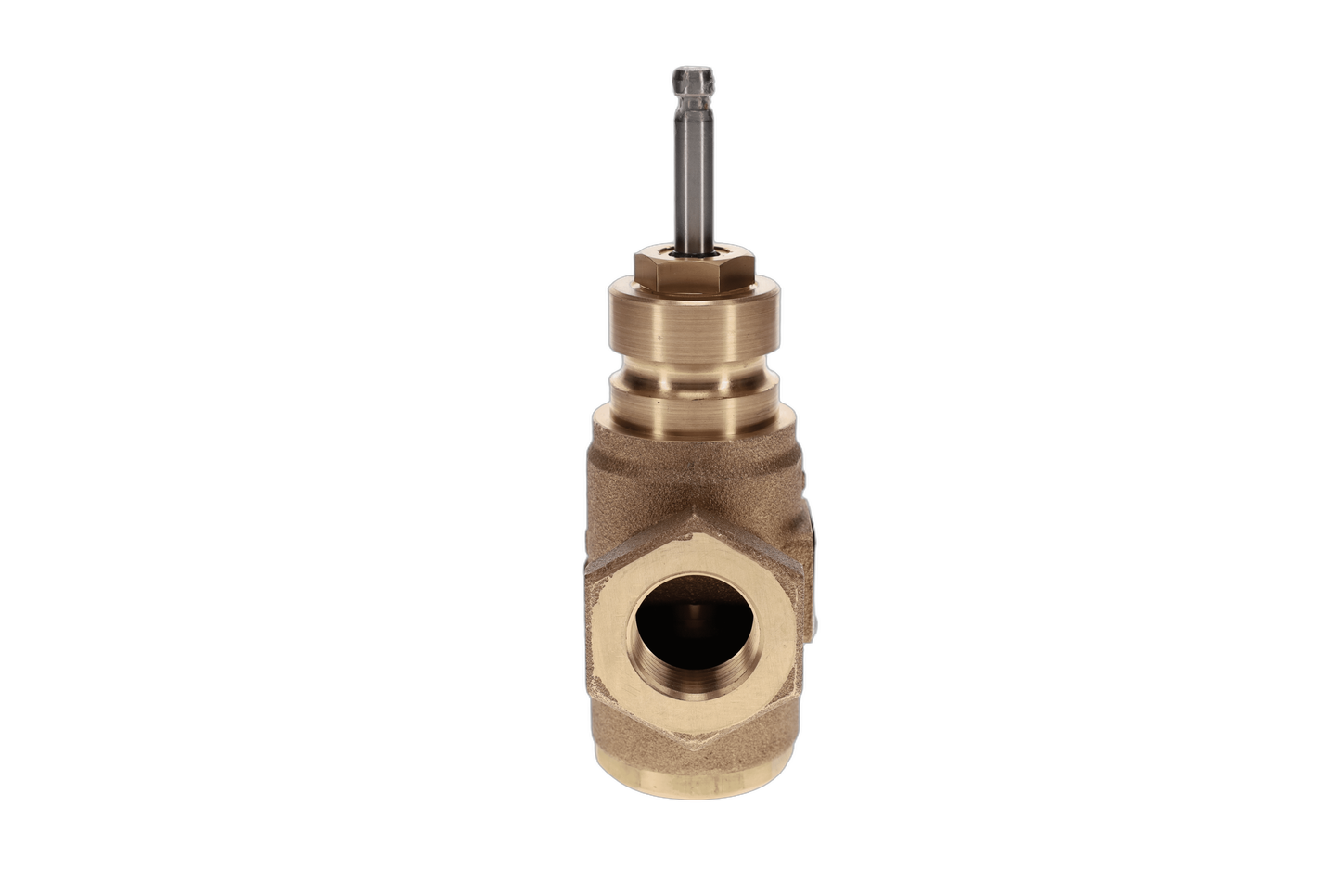

Flowrite, 1” 2-way Valve, NC, 10 Cv, Equal Percent, Brass Trim, F×F, ANSI 250
$216.86
UnitAvailable on backorder
Product Details
Flowrite, 1” 2-Way Valve, 10 Cv, Equal Percentage, NC, F×F, Brass Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators. Globe-style control valve has four connection options and a direct-coupled bonnet.
Attributes
| Connecting Thread | NPT, direct-coupled universal bonnet |
| End Connection | FxF |
| Flow Characteristic | Equal-percentage |
| Flow Coefficient Cv | 10.0000 |
| High Temperature | NO |
| Leakage Rate | Class IV (0.01% of Cv) |
| Material Inside Set | Body Trim: Brass;Stem: Stainless Steel ASTM A582 Type 303;Normal Duty Packing: EPDM O-ring;Seat: Single seat metal-to-metal |
| Material Valve Body | UNS CA 844 bronze |
| Medium | Saturated steam;Water;Water with anti-freeze |
| Medium Temperature | 20…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 20 ºF |
| Mounting Position | vertical, horizontal, upright |
| Normally Open Normally Closed | Normally Closed |
| Permissible Operating Pressure | 2758 kPa |
| Port Configuration | 2-Way Normally closed |
| Rangeability | |
| Stroke | ¾ in., 20 mm |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 1 in |
| Valve Type | Two-way |
Specifications
| SKU | CS24478 |
|---|---|
| MPN | 599-03185 |
| UPC/EAN | 804766016998 |
