Turck NI20U-MT30-AP6X-H1141
SKU: CS2435015MPN: NI20U-MT30-AP6X-H1141Alternate Part #: 1646240UPC/EAN: 4047101135145
1646240 - UPROX, BARREL, DC, CON. M12
$187.78
UnitAvailable on backorder
Product Details

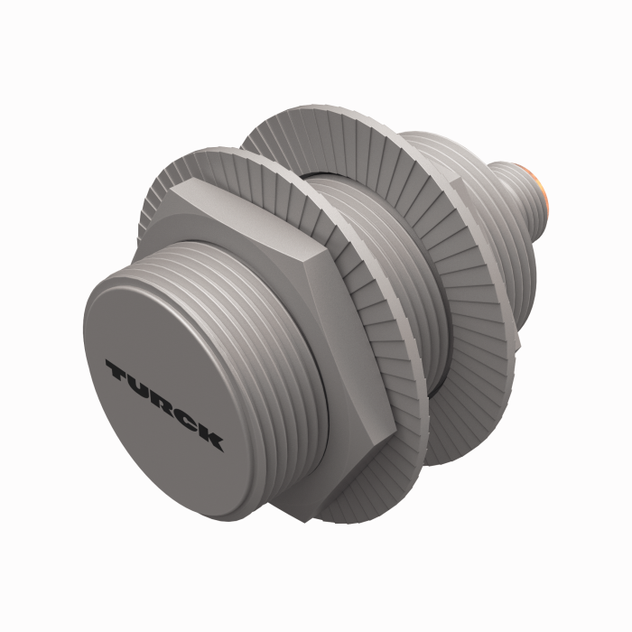

Inductive Sensor

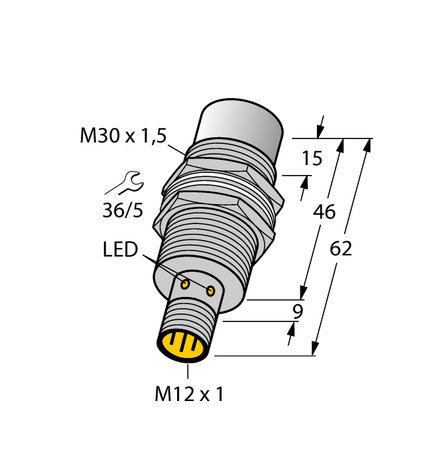

- Threaded barrel, M30 x 1.5
- Brass, PTFE-coated
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Extended temperature range
- High switching frequency
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M30 x 1.5 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, CuZn, PTFE-coated |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 20 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS2435015 |
|---|---|
| MPN | NI20U-MT30-AP6X-H1141 |
| Alternate Part # | 1646240 |
| UPC/EAN | 4047101135145 |
