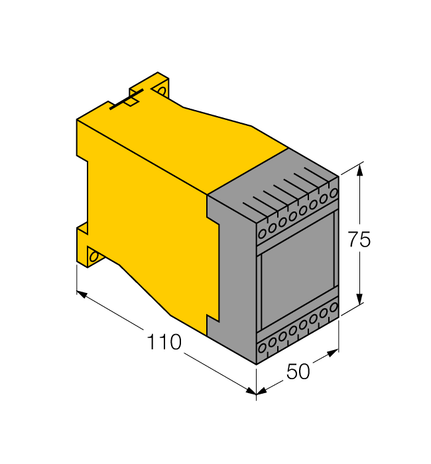

Turck MS96-12R/115VAC
SKU: CS2434377MPN: MS96-12R/115VACAlternate Part #: 5231002UPC/EAN: 4047101171082
5231002 - CAL (IMM), IM-MON, GEN., GEN.
$702.42
Unit2 in stock
Product Details
Flow Monitoring
MS96 for Flow Sensors
- For connection of a standard flow sensor
- Adjustment via potentiometer
- 6 LEDs for display of the flow state
- Temperature monitoring adjustable -20…+100 °C
- Switch-off delay adjustable 0…25 s
- Wire-break monitoring
- 92…127 VAC
- 2 changeover contacts, relay outputs for flow and temperature
Attributes
| Ambient Temperature | -20…+60 °C |
| Customs Tariff Number | 90261021000.0000 |
| Design | Signal processor |
| Ecl Ss Code V5 1 4 | 27250312 -/- Communication interface, active |
| Electrical Connection | Terminal chamber |
| Housing Material | Plastic, Polycarbonate/ABS |
| Operating Voltage | 92…127 VAC |
| Output Function | Complementary contact, Relay output |
| Protection Class | IP20 |
Specifications
| SKU | CS2434377 |
|---|---|
| MPN | MS96-12R/115VAC |
| Alternate Part # | 5231002 |
| UPC/EAN | 4047101171082 |
You may also like
Turck MS96-12R/24VDC
$702.42Unit
Turck MK96-LI01
$629.54UnitTurck MK96-VP01
$424.86UnitTurck MK 96-11-R/024VDC
$684.29Unit

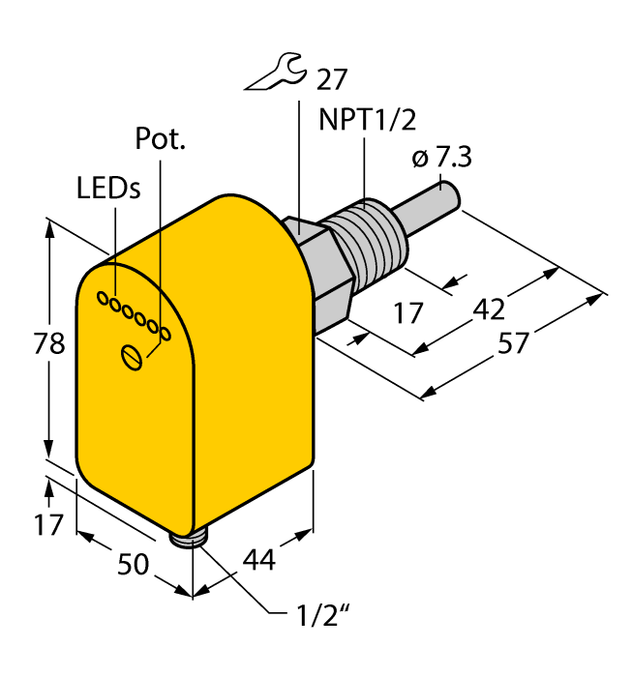

Turck FCS-N1/2A4P-ARX-B3141/115VAC
$717.51Unit

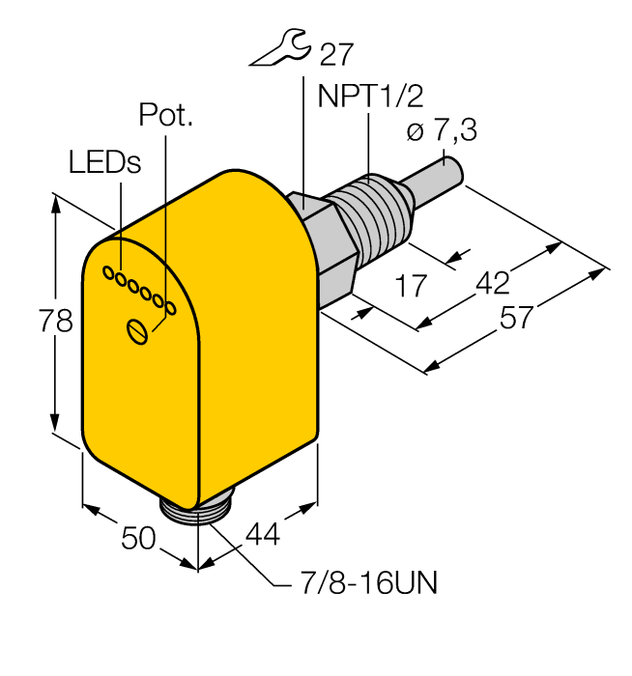

Turck FCS-N1/2A4P-ARX-B1151/115VAC
$706.04Unit
Turck FCS-N1/2A4P-ARX-B1151/L120/115VAC
$1,136.21Unit

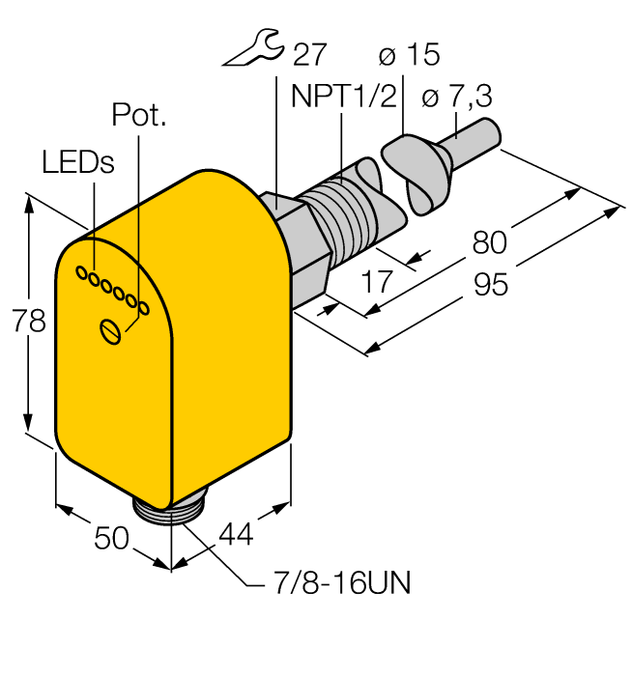

Turck FCS-N1/2A4P-ARX-B1151/L080/115VAC
