Turck BI15-CP40-FDZ30X2/S10
SKU: CS2427764MPN: BI15-CP40-FDZ30X2/S10Alternate Part #: 42241UPC/EAN: 4047101093087
42241 - FERRITE, RECT., AC, TERMINALS
$403.72
Unit5 in stock
Product Details

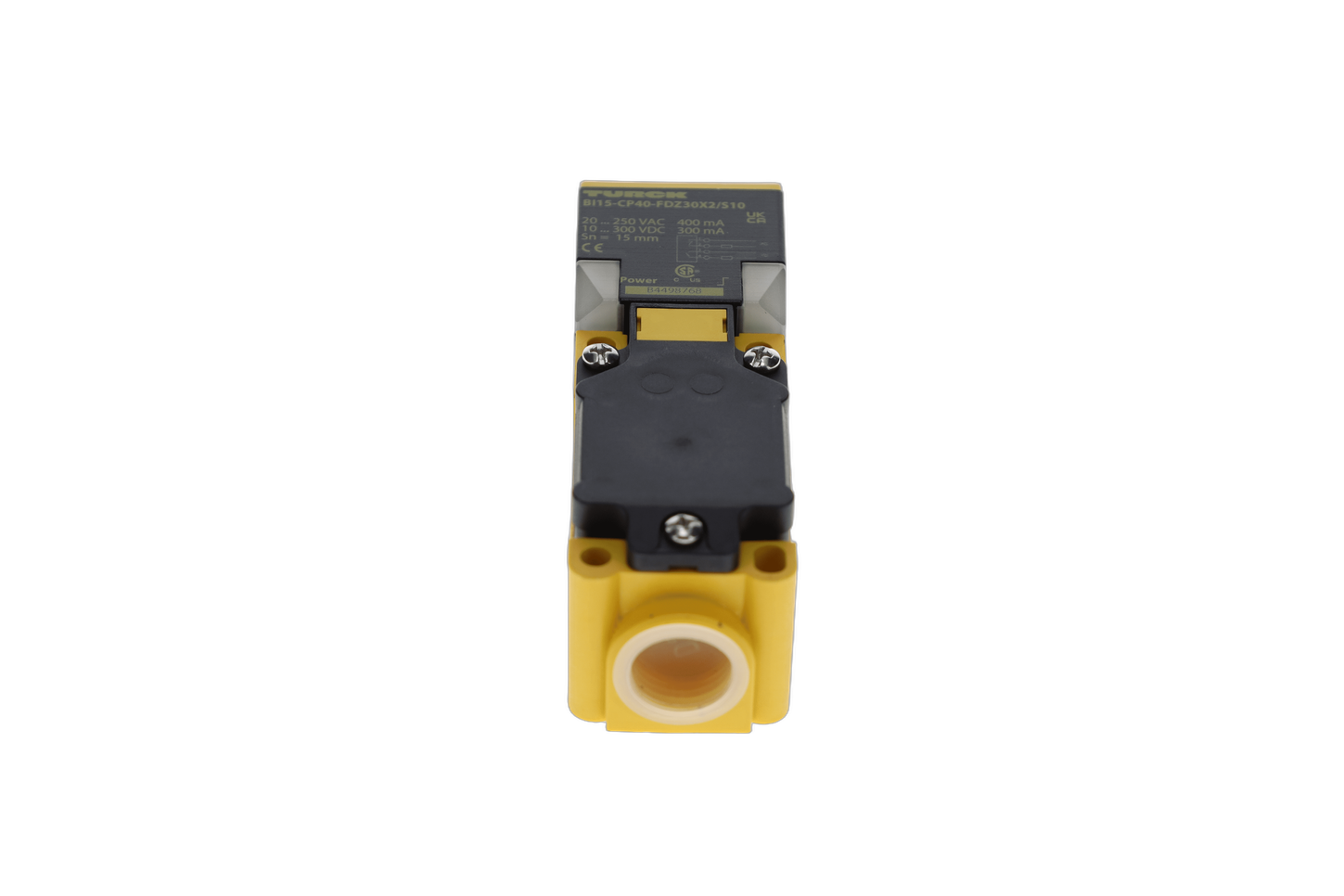

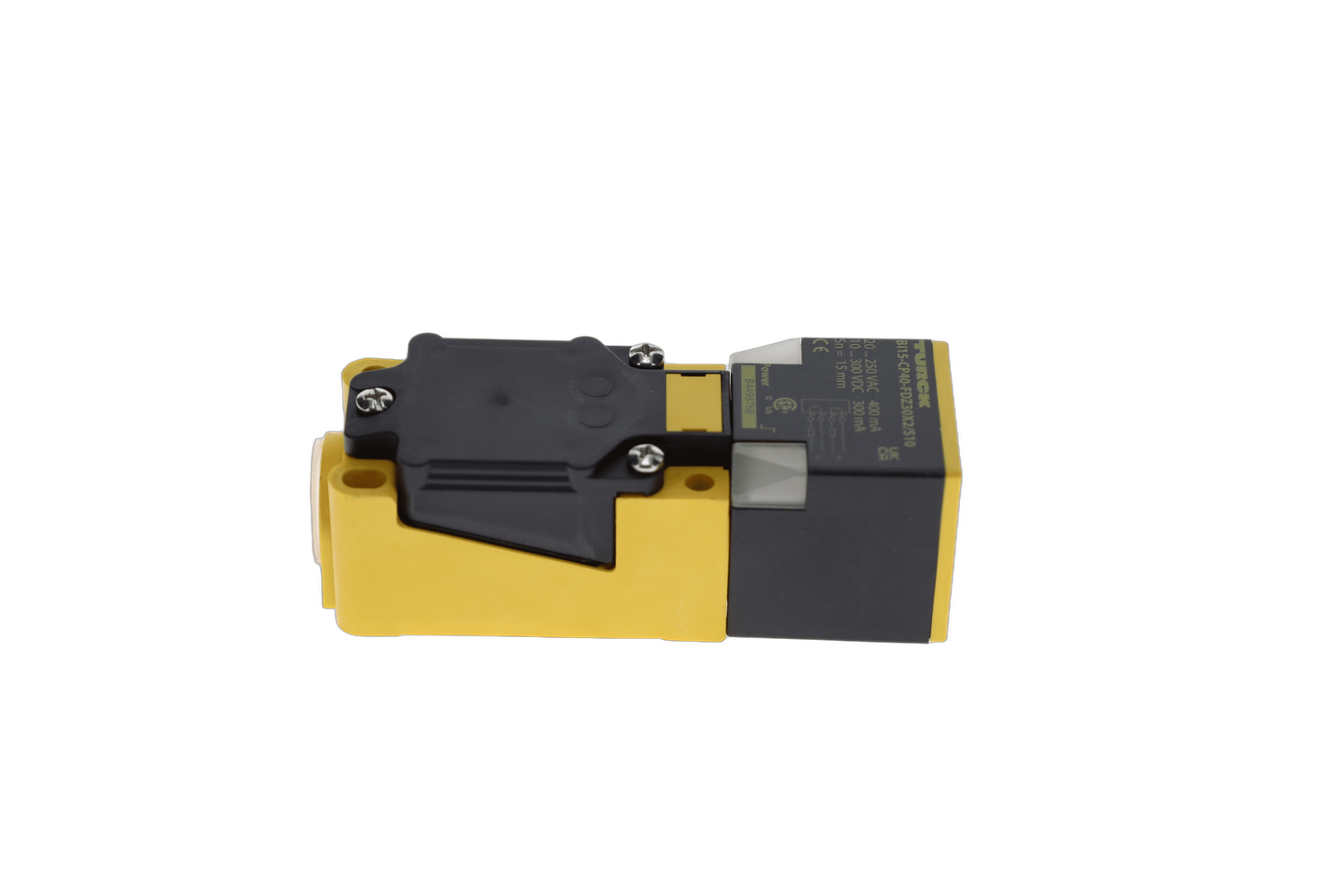

Inductive Sensor
- Rectangular, height 40 mm
- Variable orientation of active face in 9 directions
- Plastic, PBT‐GF30‐V0
- High luminance corner LEDs
- Optimum view on supply voltage and switching state from any position
- AC 2-wire, 20…250 VAC
- DC 2-wire, 10…300 VDC
- NC/NO programmable
- Terminal chamber
Attributes
| Ambient Temperature | -25…+70 °C |
| Construction Size | 114 x 40 x 40 mm, CP40 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Terminal chamber |
| Housing Material | Plastic, PBT-GF30-V0, Black |
| Mounting | Flush |
| Operating Voltage | 20…250 VAC / 10…300 VDC |
| Output Function | Connection programmable, 2-wire |
| Protection Class | IP67 |
| Rated Switching Distance | 15 mm |
| Switching Frequency | 0.020 kHz |
Specifications
| SKU | CS2427764 |
|---|---|
| MPN | BI15-CP40-FDZ30X2/S10 |
| Alternate Part # | 42241 |
| UPC/EAN | 4047101093087 |
