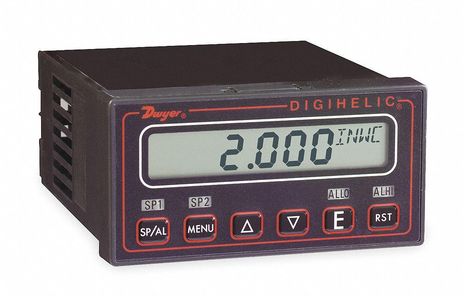

Dwyer DH-006
SKU: CS241785MPN: DH-006Alternate Part #: 102125-08
DH-006 5” H20
$829.39
UnitAvailable on backorder
Product Details
Differential pressure controller, selectable engineering units: 5.000” w.c., .4167 ft w.c., 127.0 mm w.c., 12.70 cm w.c., .1806 psi, .3678” Hg, 9.342 mm Hg, 12.45 mbar, 1245 Pa, 1.245 kPa, 12.45 hPa, 2.890 oz/in².
Attributes
| Accuracy | ±0.5% at 77°F (25°C) including hysteresis and repeatability. |
| Commodity Code | 1900 |
| Compensated Temperature Limits | 32 to 140°F (0 to 60°C). |
| Compliance | CE, UL. |
| Display | 4 digit LCD 0.4” height. LED indicators for set point and alarm status. |
| Electrical Connection | Screw terminals. |
| Electrical Rating | 8 amps at 240 VAC resistive. |
| Enclosure Rating | Face designed to meet NEMA 4X (IP66). |
| Housing Material | ABS plastic, UL approved 94 V-0. |
| Mounting Orientation | Mount unit in horizontal plane. |
| Output Signal | 4-20 mA DC into 900 Ω max. |
| Panel Cutout | 1.772 x 3.620 in (45 x 92 mm). |
| Power Consumption | Low voltage power = 24 VDC - 130 mA max; High voltage power = 100 to 240 VAC, 132 to 240 VDC - 7VA max. |
| Power Requirement | High voltage power = 100 to 240 VAC, 50 to 400 Hz or 132 to 240 VDC. Low voltage power = 24 VDC ±20%. |
| Pressure Limit | Ranges x0089¤ 2.5 in w.c. = 2 psi; 5”: 5 psi; 10”: 5 psi; 25”: 5 psi; 50”: 5 psi, 100”: 9 psi. |
| Process Connection | Compression fitting for use with ⅛” ID X ¼” OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16” ID tubing. |
| Response Time | 250 ms. |
| Serial Communication | Modbus® RTU, RS485, 9600 Baud. |
| Service | Air and non-combustible, compatible gases. |
| Set Point Adjustment | Adjustable via keypad on face. |
| Size | ⅛ DIN. |
| Stability | < ±1% per year. |
| Switch Type | 2 SPDT relays. |
| Thermal Effect | 0.020%/°F (0.036/°C) from 77°F (25°C). |
| Wetted Material | Consult factory. |
| Zero Span Adjustments | Accessible via menus. |
Specifications
| SKU | CS241785 |
|---|---|
| MPN | DH-006 |
| Alternate Part # | 102125-08 |
