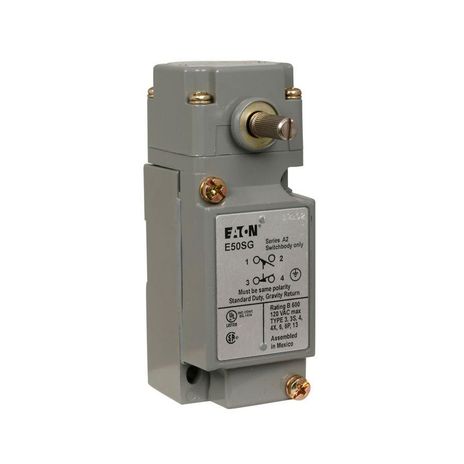

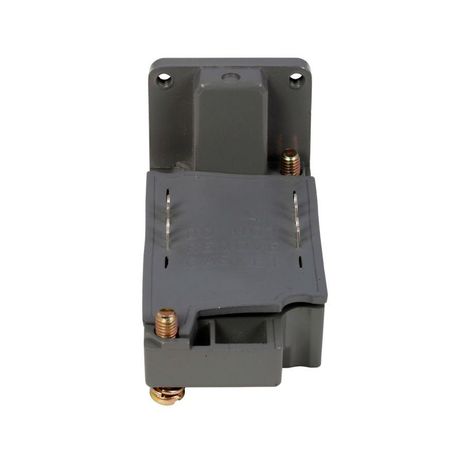

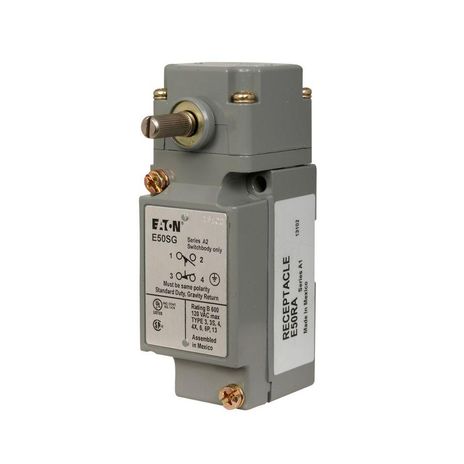

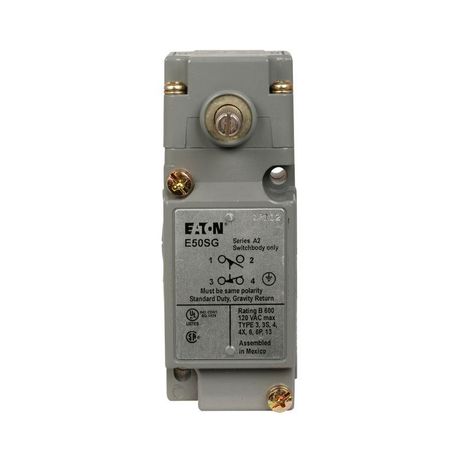

Eaton E50SG
SKU: CS2410664MPN: E50SGUPC/EAN: 782113308784
Eaton E50 NEMA heavy duty plug-in limit switch
Contact us for pricing and availability
Product Details
Eaton E50 NEMA heavy duty plug-in limit switch, Assembled switch, E50, 5A at 240V, 1NO-1NC, Die cast zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, 5A continuous, 14° to 201°F (-10° to 94°C), E50
Attributes
| Contact Configuration | 1 NO-1 NC |
| Contact Rating | 5A at 240V |
| Enclosure Material | Die cast zinc |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Maximum Ac Current | 5 A continuous |
| Operating Temperature Max | 201 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 14 FAH |
| Operating Temperature Min Uom | FAH |
| Series | E50 |
| Special Features | Assembled switch |
| Type | E50 |
Specifications
| SKU | CS2410664 |
|---|---|
| MPN | E50SG |
| UPC/EAN | 782113308784 |
