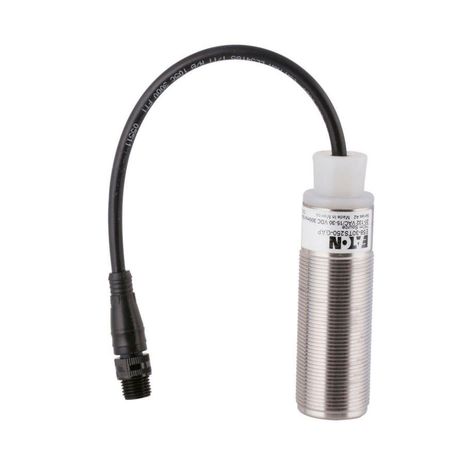

Eaton E58-30TS250-GAP

Name: Eaton E58-30TS250-GAP
Brand: Eaton
SKU: CS2389506
Price: 974.60 USD
Availability: OutOfStock

SKU: CS2389506MPN: E58-30TS250-GAPUPC/EAN: 782114091623

Eaton harsh-duty sensor

Product Details

Eaton harsh-duty sensor, E58, Through Beam, Straight, Power ON, Dual key micro, 300 mA at 20-132 Vac/15-30 Vdc, 4 pin, AC: L1 switched, DC: NPN open collector, 20-132 Vac 50/60 Hz, 15-30 Vdc

Attributes

Connection	Dual key micro
Contact Configuration	DC: NPN open collector AC: L1 switched
Contact Rating	300 mA at 20-132 Vac/15-30 Vdc
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 12K, NEMA 13, IP69K
Input Voltage	20-132 Vac at 50/60 Hz, 15-30 Vdc
Led Indicator	Power on
Maximum Ac Current	300 mA
Maximum Dc Current	300 mA
Number Of Pins	4.0000
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Through beam
Series	E58
