Turck

Turck BI1.5-EG08-AP6X-V1131

SKU: CS2194653MPN: BI1.5-EG08-AP6X-V1131Alternate Part #s: 4602220TUR-BI1.5-EG08-AP6X-V1131UPC/EAN: 4047101152456

4602220 - FERRITE, BARREL, DC, CON. M8

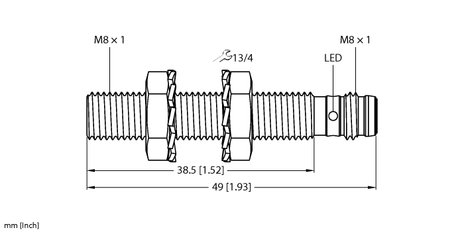

Turck 4602220, BI1.5-EG08-AP6X-V1131/S100, BI1.5-EG08-RN6X-V1131, BI1.5-EG08-RP6X-V1131, BI2-EG08-AN6X-V1131, BI2-EG08-AN6X-V1131/S1589, BI2-EG08-AP6X-V1131, BI2-EG08-AP6X-V1131/S1589, BI2-EG08-RN6X-V1131, BI2-EG08-RP6X-V1131, TURCK
$162.95
Unit
15 in stock
remove
add

Product Details

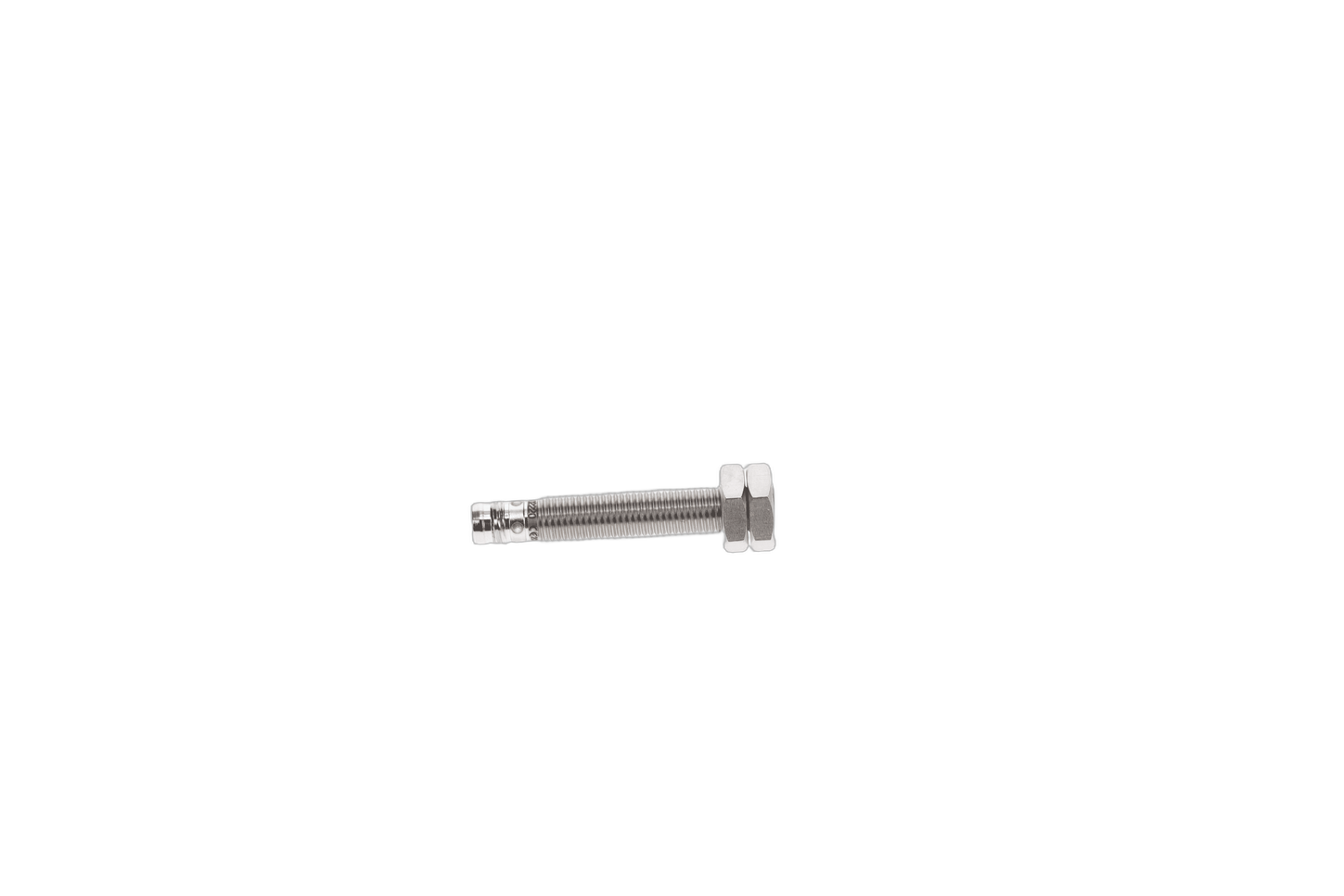

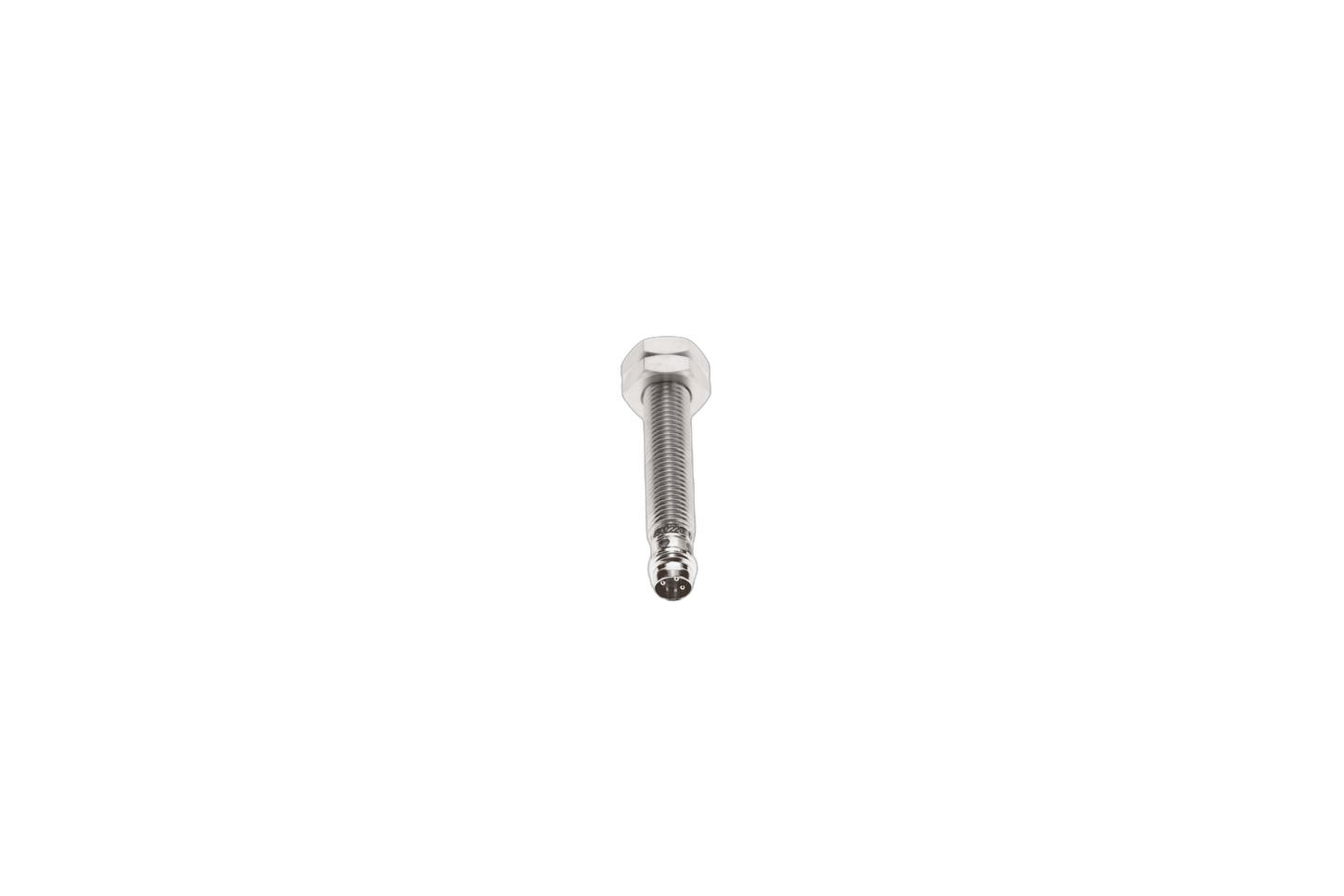

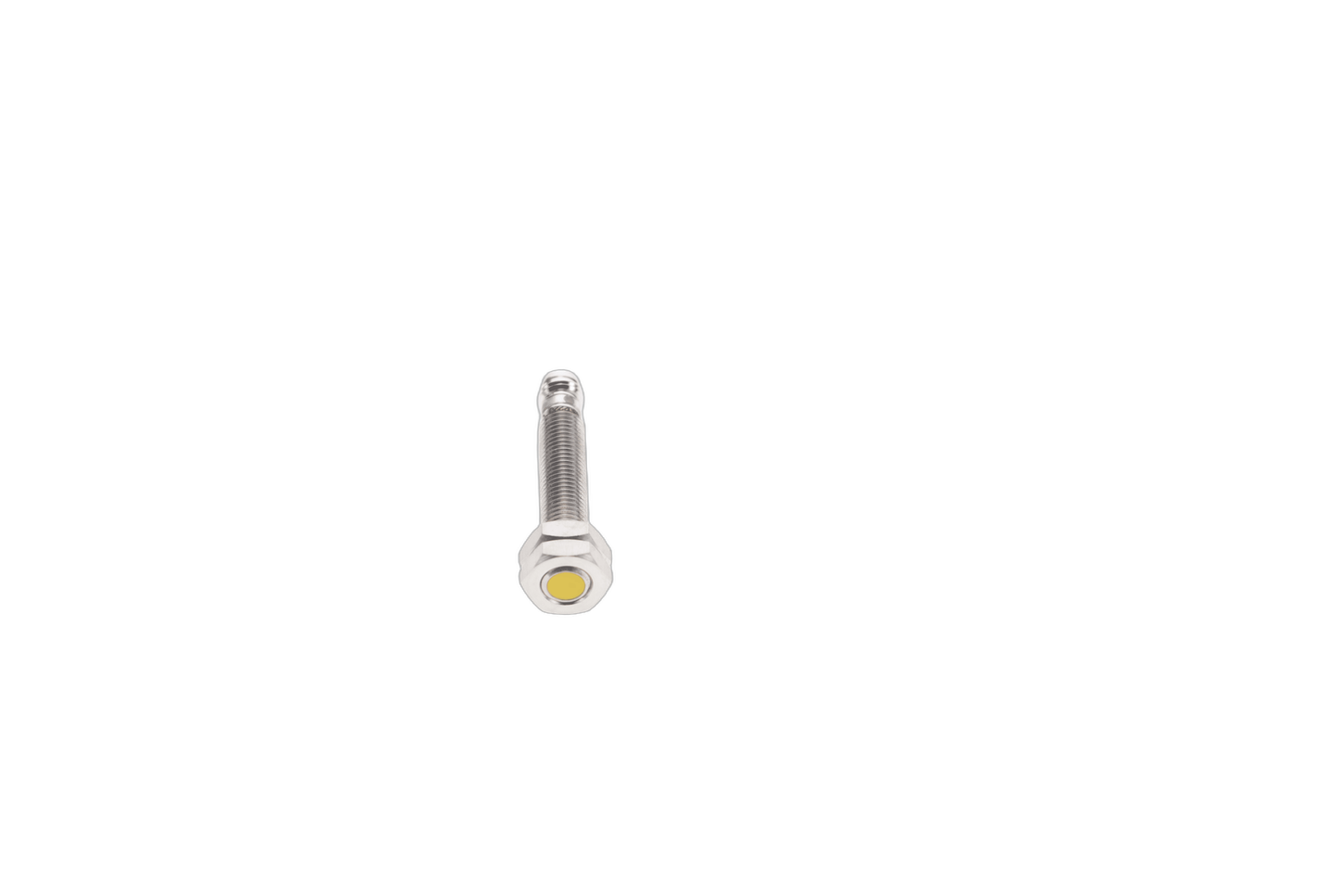

Inductive Sensor

  • M8 × 1 threaded barrel
  • Stainless steel, 1.4305 (AISI 303)
  • DC 3-wire, 10…30 VDC
  • NO contact, PNP output
  • M8 x 1 male connector

Attributes

Ambient Temperature -25…+70 °C
Construction Size M8 x 1
Customs Tariff Number 85365019900.0000
Design Threaded barrel
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, M8 × 1
Housing Material Stainless steel, 1.4305 (AISI 303)
Mounting Flush
Operating Voltage 10…30 VDC
Output Function NO contact, PNP
Protection Class IP67
Rated Switching Distance 1.5 mm
Switching Frequency 3.0 kHz

Specifications

SKUCS2194653
MPNBI1.5-EG08-AP6X-V1131
Alternate Part #s4602220, TUR-BI1.5-EG08-AP6X-V1131
UPC/EAN4047101152456
