Telemecanique 9013FHG2J99M1XZ22

Name: Telemecanique 9013FHG2J99M1XZ22
Brand: Telemecanique
SKU: CS2078501
Availability: OutOfStock

SKU: CS2078501MPN: 9013FHG2J99M1XZ22UPC/EAN: 785901105619

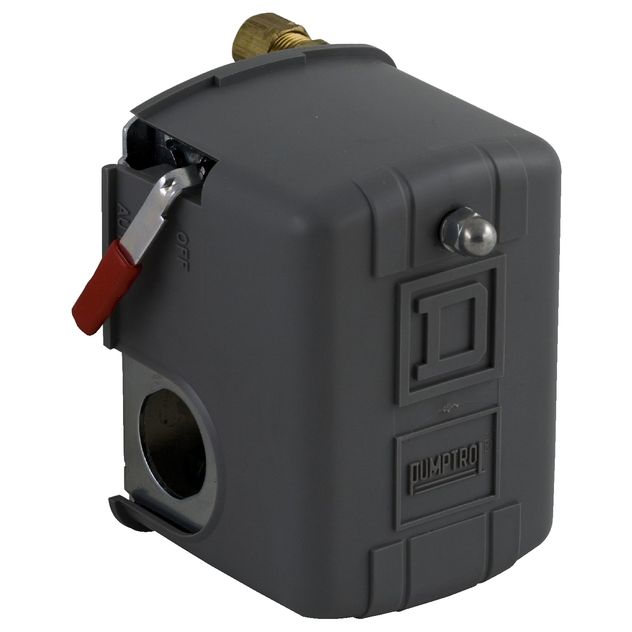

Square D Pumptrol, air compressor switch 9013FH, fixed differential, factory setting, low hp

Product Details

Pressure Switch, 575 VACm 1HP, F +, air compressor switch 9013FH - fixed differential - factory setting - low hp

Sena Adjustable Range On Rising Pressure	40-100 psi
Sena Ambient Air Temperature For Operation	-33-257 °F
Sena Ambient Air Temperature For Operation 1	-33-257 °F
Sena Ambient Air Temperature For Storage	-33-257 °F
Sena Approximate Fixed Differential	20 psi
Sena Destruction Pressure	220 psi
Sena Electrical Circuit Type	power circuit
Sena Factory Modification	black cover# #maintained manual cut-out lever (AUTO-OFF)# #2-way pressure release valve
Sena Local Display	without
Sena Maximum Operating Rate	10 cyc/mn
Sena Mechanical Durability	300000 cycles
Sena Operating Position	any position
Sena Pressure Actuator	diaphragm
Sena Pressure Sensor Name	9013FH
Sena Pressure Sensor Type	electromechanical pressure switch
Sena Pressure Switch Type Of Operation	regulation between 2 thresholds
Sena Product Certifications	CSA file LR25490# #UL listed file E12158
Sena Product Specific Application	control small electrically driven air compressors
Sena Protective Treatment	none
Sena Quantity Per Set	1
Sena Range Of Product	Square D Pumptrol
Sena Scale Type	fixed differential
Sena Setting	internal
Sena Standards	UL 508# #CE
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	L1-T1# #L2-T2
Sena Type Of Packing	individual
Sena Value Of Setting	specify pressure settings
