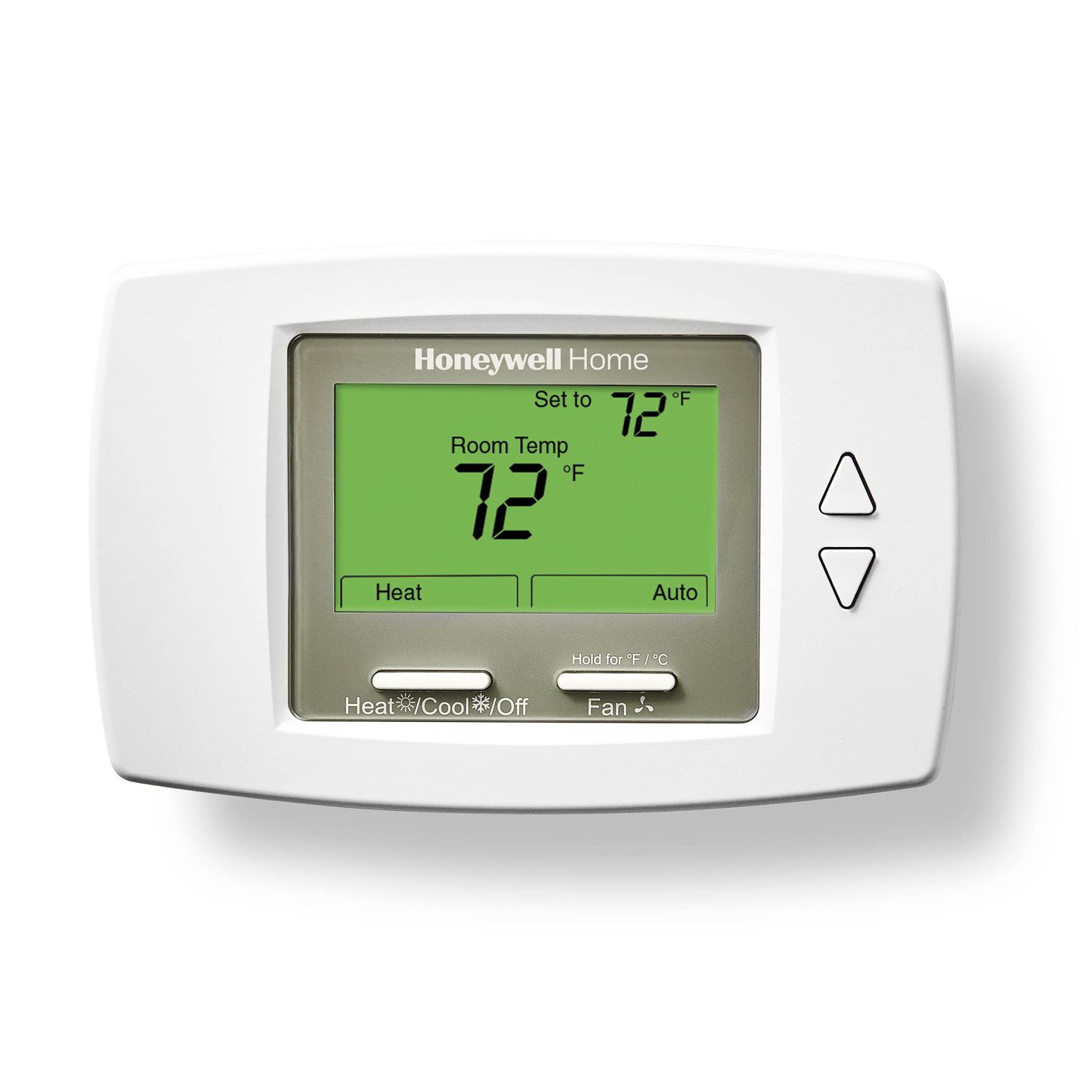

Resideo TB6575B1000

120/240 VAC - 3-Speed Fan Coil Thermostat with 2 Pipe Manual/Auto Heat/Cool Changeover

The SuitePROâ„¢ is a family of digital fan coil thermostats for residential and commercial applications such as hotels, condominiums, school classrooms, etc

TB6575B1000: 2-pipe only with seasonal or manual heat/cool changeover; 120/240 Vac

Suitable for multiple applications. Changes in output wiring and external links between wiring terminals allow you to configure the thermostat for the appropriate application

The applications that are available are:

• Heating or cooling only
• Two pipes: heat or cool with manual changeover
• Two pipes: heat or cool with seasonal changeover (requires optional pipe sensor)
• Two pipes: heat or cool with auxiliary heat and manual or seasonal changeover (requires optional pipe sensor)

Features:

• Simple, intuitive user interface.
• Pre-installed lead wires for fast installation
• Backlight display permits easy viewing in any light.
• Four buttons allow manual control of system operation, fan speed, and temperature setpoint adjustment.
• Digital display of ambient temperature, setpoint, heating or cooling mode, fan status, and remote setback
• Proportional plus Integral (P+I) control algorithm for precision temperature regulation.
• Adjustable maximum heating and minimum cooling setpoint limits using range stops.
• EEPROM permanently retains user settings, including setpoints, during power loss (no batteries required).
• Selectable °C or °F display via Setup button on thermostat.
• Displayable pipe sensor temperature readout to aid in troubleshooting.
• Selectable to allow the fan motor to always begin on high speed to ensure sufficient torque at startup.
• Option to wire a remote indoor temperature sensor.
• Freeze protect algorithm turns on heat when needed.
• Economy Setback options via dry contact or Activity Sensing
• Advanced fan control with VersaSpeedTM fan ramp algorithm and Auto Fan Reset
