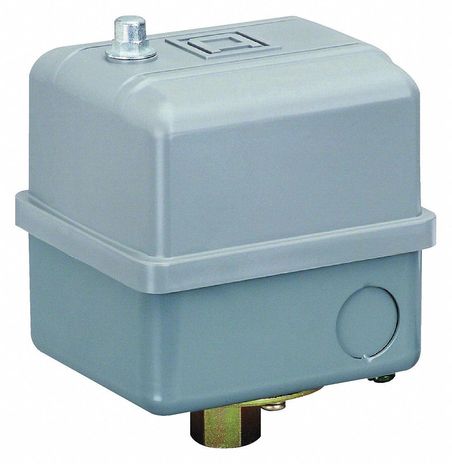

Telemecanique 9013GHG2J31

Name: Telemecanique 9013GHG2J31
Brand: Telemecanique
SKU: CS198257
Availability: OutOfStock

SKU: CS198257MPN: 9013GHG2J31UPC/EAN: 785901561200

Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., 90 120 PSI

Product Details

Pressure Switch:

Type: G* Pumptrol* Control electrically driven water pumps and air compressors* UL Listed File Number: E12158 CCN NKPZ - CSA Certified File Number: LR25490* Enclosure Rating: NEMA 1* Pressure Connection: Internal: 0.25 Inch NPSF* 1-Phase: 2HP at 115VAC - 3HP at 230VAC - 5HP at 460/575VAC; 3-Phase: 3HP at 115VAC - 5HP at 230VAC - 5HP at 460/575VAC; 1HP at 115/230VDC* Mounting: Bracket* 575VAC* 2 Normally Closed* 2-Pole* Differential Type: Adjustable* 20 to 40 PSIG

Sena Adjustable Range On Rising Pressure	65-200 psi
Sena Ambient Air Temperature For Operation	-33-257 °F
Sena Ambient Air Temperature For Operation 1	-33-257 °F
Sena Ambient Air Temperature For Storage	-33-257 °F
Sena Approximate Adjustable Differential	20-40 psi
Sena Destruction Pressure	300 psi
Sena Electrical Circuit Type	power circuit
Sena Factory Modification	-
Sena Local Display	without
Sena Maximum Operating Rate	10 cyc/mn
Sena Mechanical Durability	300000 cycles
Sena Operating Position	any position
Sena Pressure Actuator	diaphragm
Sena Pressure Sensor Name	9013GH
Sena Pressure Sensor Type	electromechanical pressure switch
Sena Pressure Switch Type Of Operation	regulation between 2 thresholds
Sena Product Certifications	UL listed file E12158# #CSA file LR25490
Sena Product Specific Application	control electrically driven water pumps and air compressors
Sena Protective Treatment	none
Sena Quantity Per Set	1
Sena Range Of Product	Square D Pumptrol
Sena Scale Type	adjustable differential
Sena Setting	internal
Sena Standards	NSF ANSI 372# #CE# #UL 508
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	L1-T1# #L2-T2
Sena Type Of Packing	individual
Sena Value Of Setting	90…120 psi
