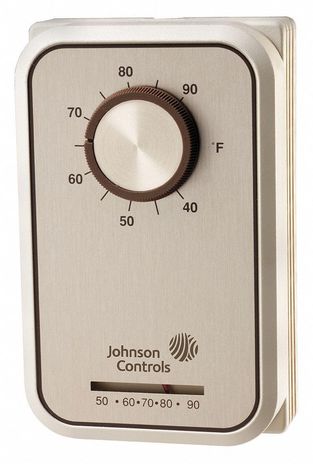

Johnson Controls T26A-15C

LINE VOLTAGE THERMOSTAT; THERMOSTAT; HTG; 40/68F LINE VOLT; NO THERMOMETERKNOB

Features

• Line Voltage Components Switch Box mounted which provides isolation of electrical circuit from sensing element
• Models with limited ranges available provides energy conservation
• Adjustable High/Low Range Stops
• Enclosed Pennswitch provides dust protection for contacts
• Mounting Plate allows easy mounting and wiring without removing the cover

Specifications

• Differential: Approximately 0.7 F
• Ambient Operating Temperature: 0 to 105?F
• Sensing Element: Liquid Filled
• Thermometer: Bi-metal Type
• Switch: Snap-acting Contacts in a Dust-protected Enclosure
• Mounting: Vertical or Horizontal 2 x 4 in. Wall Box
• Wiring Terminals: Large 8-32 x ¼ in. Binder Head Screws
• Dimensions (H x W x D): 4.71 x 2.96 x 2.87 in.
