Siemens 258-02071
SKU: CS17980MPN: 258-02071UPC/EAN: 4034106361303

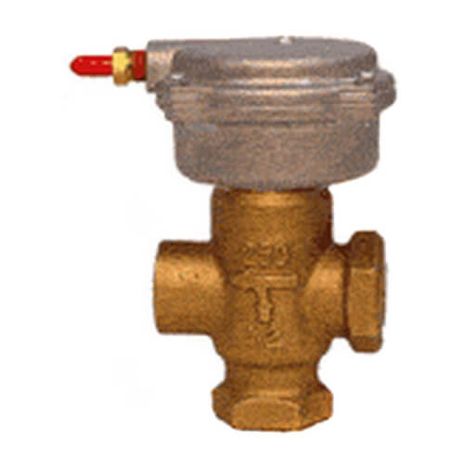

MT Series 3-Way Valve Assembly, ANSI 250, Linear, 1”, FxF, 10 Cv, 8-13psi SR
$240.22
UnitAvailable on backorder
Product Details
This Valve Assembly is a Powermite 599 MT Series, ANSI Class 250, 3-W, Mix, Linear, 10 Cv, FxF, 1 In, Brass Body, Includes MT Series 2 In Pneumatic Actuator with 8-13 psi SR, Used for control of hot or chilled water for convectors
Attributes
| Actuator Type | Pneumatic |
| Close Off Pressure | 40 psi |
| End Connection | NPT |
| Fail Safe | Yes |
| Flow Characteristic | Linear |
| Flow Coefficient Cv | 10.0000 |
| Max Differential Pressure Liquid | 25 psi |
| Max Inlet Pressure Absolute Liquid | 400 psi |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 35…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 35 ºF |
| Operating Voltage | Pneumatic |
| Port Configuration | 3-Way Mixing |
| Spring Range | 8-13 psi |
| Trim Material | Brass |
| Valve Size | 1 in |
| Valve Type | Three-way |
Specifications
| SKU | CS17980 |
|---|---|
| MPN | 258-02071 |
| UPC/EAN | 4034106361303 |
