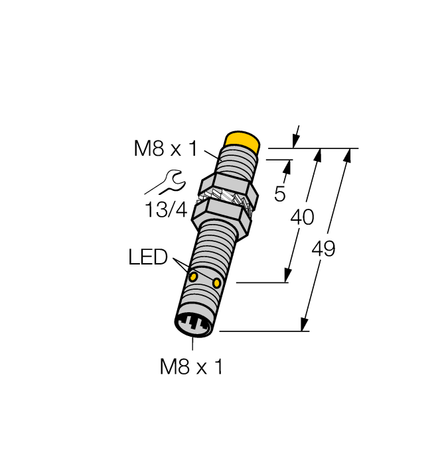

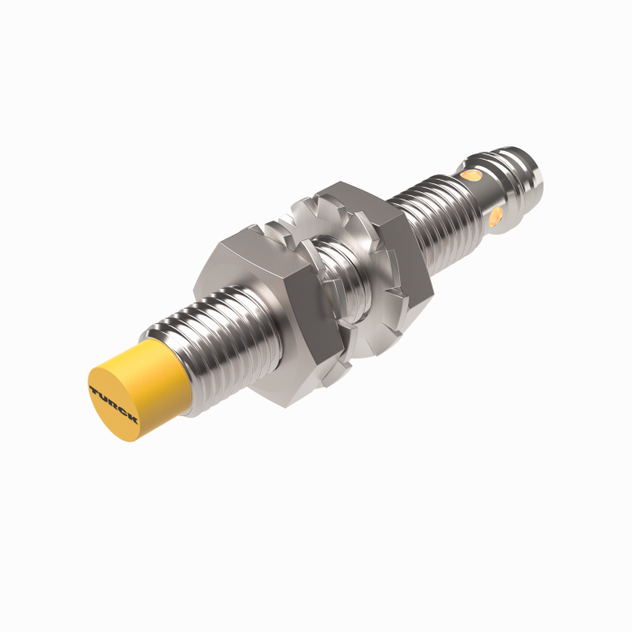

Turck NI6U-EG08-AP6X-V1131
SKU: CS1767520MPN: NI6U-EG08-AP6X-V1131Alternate Part #: 4635801UPC/EAN: 4047101158540
4635801 - UPROX, BARREL, DC, CON. M8
$149.15
UnitAvailable on backorder
Product Details
Inductive Sensor
With Extended Switching Distance
- Threaded barrel, M8 x 1
- Stainless steel, 1.4427 SO
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Large switching distance
- High switching frequency
- Integrated protection against predamping
- Little metal-free spaces
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M8 x 1 male connector
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M8 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M8 × 1 |
| Housing Material | Stainless steel, 1.4427 SO |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 6 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS1767520 |
|---|---|
| MPN | NI6U-EG08-AP6X-V1131 |
| Alternate Part # | 4635801 |
| UPC/EAN | 4047101158540 |
