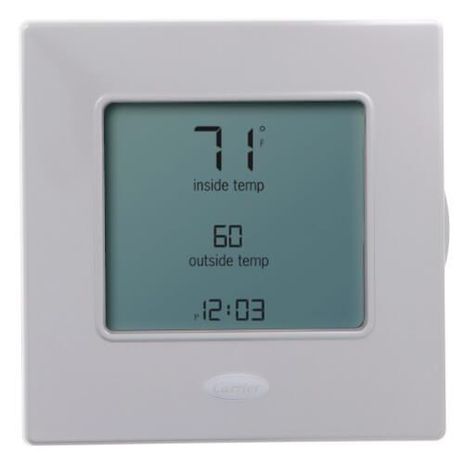

Carrier 33CS2PP2S-03

Edge Pro Commercial Programmable or Non-Programmable Thermostat

Carrier’s Edge Pro commercial thermostat maintains room temperature by controlling the operation of an HVAC system. Separate heating and cooling set points and auto-changeover capability allow occupied and unoccupied programming for energy savings.

Features:

• 7-day, 5/2-day, or 1-day programmable or non-programmable
• Sleek design with simplified two-wire installation
• 2-stage heat/2-stage cool with auxiliary heat (air conditioning, heat pump, and water source heat pump units)
• Humidity control capability (with 33CS2PPRH-03 thermostat only) integrates with Humidi-MiZer® dehumidification system
• Hybrid Heat® dual fuel system compatible (33CS2PP2S-03)
• Proportional integral control of heating and cooling stages
• Compressor lockout in emergency heat mode for heat pumps
• Auxiliary heat lockout sensing for heat pumps (requires outdoor air sensor)
• Remote sensing and averaging with occupancy override
• Keypad lockout security with passcode protection
• Heating and cooling set points with up to 6 hours of occupancy override
• 4 or 2 periods per day selectable
• No batteries are required, user-configured settings are stored for an unlimited period of time
• UV light and filter service reminder
• Expanded backlit display features mode and equipment status, occupancy, time of day, and outdoor air temperature
• Hospitality mode — display user set point in place of actual temperature
• Daylight savings adjustment
• Random start
• Smart recovery
• Dry contact enables economizer control
