Square D 9070T100D20

Name: Square D 9070T100D20
Brand: Square D
SKU: CS1686705
Price: 299.59 USD
Availability: OutOfStock

SKU: CS1686705MPN: 9070T100D20UPC/EAN: 785901905059

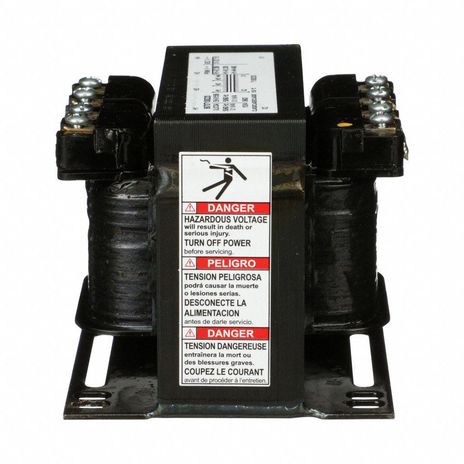

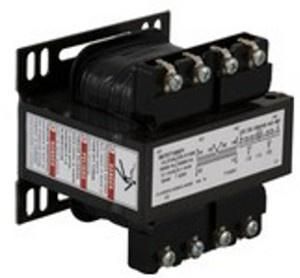

Transformer, Type T, industrial control, 100VA, 1 phase, 208/230/460V primary, 115V secondary, 55C rise

$299.59

Unit

Available on backorder

Quantity

remove

add

Documents

Industrial Control Transformer:

Application: Specifically designed to handle high inrush associated with contactors and relays forapplications such as conveyor systems, paint lines, punch presses or overhead cranes* Approvals: UL Listed File Number: E61239 - CSA Certified File Number: LR37055 Guide: 184-N-90 -CE Marked* Fuse Block: * Terminal Type: Screw Clamp* Type: T* Mounting Type: Panel* Phase: 1-Phase* Enclosure Type: Open* Temperature Rise: 55 Degrees C* Primary Voltage: 120x240V* Insulation Temperature: 105 Degrees C* Rating: 100 VA* Secondary Voltage: 24V* Depth: 3.34 inches* Width: 3.38 inches* Winding Material: Copper* Height: 2.89 inches

Electrical Connection	screw clamp terminals
Insulation Temperature	105 °C
Nema Degree Of Protection	not rated (open device)
Network Number Of Phases	1 phase
Product Certifications	CSA file LR37055 guide 184-N-90# #UL listed file E61239
Product Compatibility	FSC1
Product Or Component Type	Industrial Control Transformer
Range Of Product	T
Rated Power In Va	100 VA
Temperature Rise	55 °C
