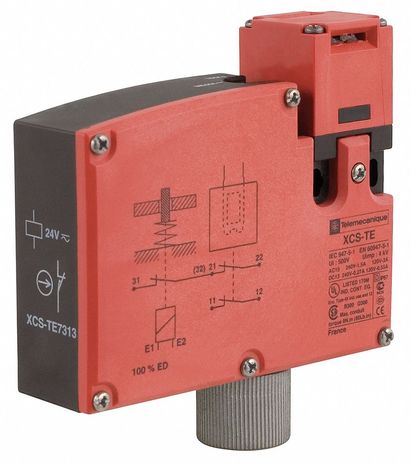

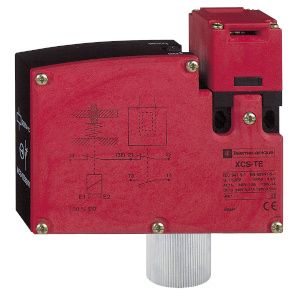

Square D XCSTE7313

Name: Square D XCSTE7313
Brand: Square D
SKU: CS1679339
Availability: InStock

SKU: CS1679339MPN: XCSTE7313

Safety switch, Telemecanique Safety switches XCS, plastic XCSTE, 2NC, slow break, 1 entry tapped ½” NPT -24 V

3 in stock

Product Details

PLASTIC SAFETY SWITCH XCSTE

Ithe Conventional Enclosed Thermal Current	0.25
Actuator Forcible Withdrawal Rtc	500 N
Ambient Air Temperature For Operation	-25-60 °C
Ambient Air Temperature For Operation 1	-25-60 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	PA (polyamide)
Component Name	XCSTE
Contact Operation	slow-break, simultaneous
Contacts Type And Composition	2 NC
Design	rectangular
Electromagnet Interlocking	locking on de-energisation and unlocking on energisation of solenoid
Head Material	PA (polyamide)
Head Type	key operated turret head
Insulation	double insulated
Load Factor	1.0000
Locking Options Description	with interlocking, locking by solenoid
Material	plastic
Maximum Actuation Speed	0.5 m/s
Mechanical Durability	1000000 cycles
Minimum Actuation Speed	0.01 m/s
Number Of Poles	2.0
Positive Opening	with NC contact
Positive Opening Minimum Force	15 N
Product Certifications	UL# #CSA
Product Or Component Type	safety switch
Protective Treatment	TC
Range Of Product	Telemecanique Safety switches XCS
Standards	EN/IEC 60204-1# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #EN/ISO 12100# #UL 508# #EN 1088/ISO 14119
Supply Frequency	50/60 Hz
Supply Voltage Type	AC/DC
