Square D 9001K1L35GH13

Name: Square D 9001K1L35GH13
Brand: Square D
SKU: CS1676463
Price: 157.47 USD
Availability: OutOfStock

SKU: CS1676463MPN: 9001K1L35GH13UPC/EAN: 785901027294

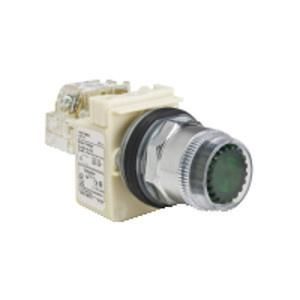

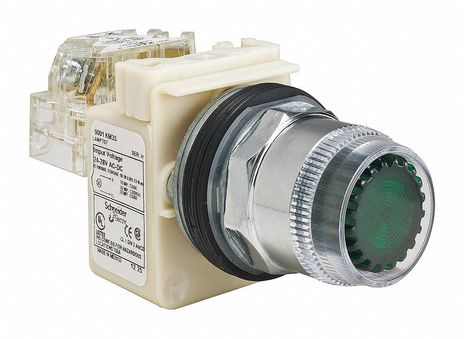

Illuminated push-button, Harmony 9001K, metal, plastic guard flush, green, 30mm, spring return, 24-28V, 1 C/O

$157.47

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony 9001K Pilot Light

Mounting Diameter: 30mm* Type of Operator: Spring Return* Operator Profile: Green flush* Light Block Supply: Direct* Light Source: Incandescent* Rated Supply Voltage: 24-28V AC/DC* Degree of Protection: NEMA 1, 2, 3, 3R, 4, 6, 12, 13

Bezel Material	chromium plated metal
Bulb Base	BA 9s
Contact Operation	standard
Contacts Type And Composition	1 C/O
Device Presentation	complete product
Device Short Name	K
Mounting Diameter	30 mm
Operating Position	any position
Operator Additional Information	full guard in plastic
Product Certifications	UL listed file E42259 CCN NKCR# #CSA LR 25490 class 3211 03# #NEMA# #CE
Product Or Component Type	illuminated push-button
Range Of Product	Harmony 9001K
