Square D 9080LBC365208
SKU: CS1672367MPN: 9080LBC365208UPC/EAN: 785901097693

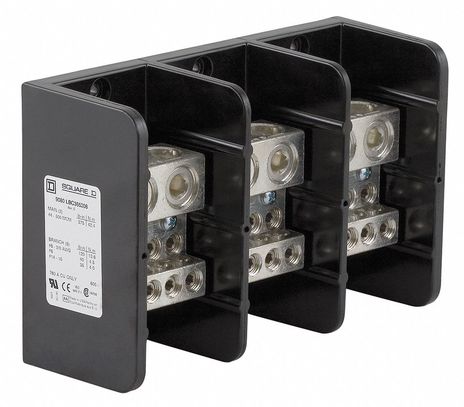

Power distribution block, Linergy, 3 pole, 2 line, 8 load, 760A Cu, 600V
$534.17
UnitAvailable on backorder
Product Details
Power Distribution Block Max Amps 760 A Number of Poles 3 Primary Connections/Pole 2 Primary Wire Range (AWG) 4 AWG to 500 MCM Secondary Connection/Pole 8 Secondary Wire Range (AWG) 14 to 2/0 AWG Voltage Rating 600V AC Power Distribution Block Design Open Length 5.5 in Depth 3.12 in Width 8.54 in Standards CE Marked CSA File 70361 Class 6228-1 UL File E60616 Guide XCFR2
Attributes
| Ambient Air Temperature For Operation | -40-302 °F |
| Ambient Air Temperature For Operation 1 | -40-302 °F |
| Mounting Support | surface mount |
| Number Of Poles | 3 |
| Product Certifications | CSA file 70361 class 6228 01# #UL recognized E60616 CCN XCFR2# #CE |
| Product Compatibility | 9080LB53 |
| Product Or Component Type | Power Distribution Block |
| Range Of Product | 9080LB |
Specifications
| SKU | CS1672367 |
|---|---|
| MPN | 9080LBC365208 |
| UPC/EAN | 785901097693 |
