Square D XESB2011

Name: Square D XESB2011
Brand: Square D
SKU: CS1669982
Price: 31.85 USD
Availability: OutOfStock

SKU: CS1669982MPN: XESB2011

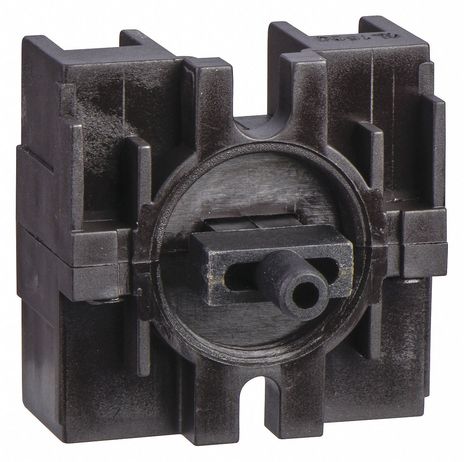

Single contact block, Harmony XAC, spring return, front mounting, single speed CO for XACB91 operators

$31.85

Unit

Available on backorder

Quantity

remove

add

Product Details

PENDANT STATION CONTACT 600VAC 10A XE

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Component Name	XESB
Contact Block Application	single speed
Contact Block Type	single
Contact Operation	snap action
Electrical Circuit Type	control circuit
Maximum Resistance Across Terminals	25 MOhm
Mechanical Durability	1000000 cycles
Mechanical Interlocking	without mechanical interlock
Mounting Of Block	front mounting
Operating Force	25 N# #15 N
Product Compatibility	XACM# #XACB# #XAB91…
Product Or Component Type	contact block
Range Of Product	Harmony XAC
Standards	EN 60947-5-1# #CSA C22.2 No 14# #IEC 60947-5-1
Terminal Identifier	(13-14)NO# #(11-12)NC
Terminals Description Iso N 1	(3-4-1-2)OF
Type Of Operator	spring return
