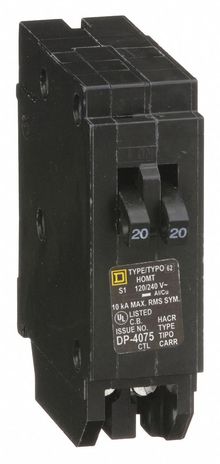

Square D HOMT2020

CIRCUIT BREAKER 120/240V 20A

Miniature Circuit Breaker Amps 20 A AC Voltage Rating 120/240V AC Circuit Breaker Type Tandem Number of Poles 1 DC Voltage Rating Not Rated Circuit Breaker Actuator Paddle Circuit Breaker Mounting Style Plug In Compatible Panelboard/Load Center Series HOM Phase Single Series HOM Max AIR Rating 10kA at 120/240V AC For Use With Homeline Load Center Terminal Connection Lug Frame Size 100A/HOM Length 3.13 in Width 1 in Depth 2.98 in Min Operating Temp 104 Degrees F
