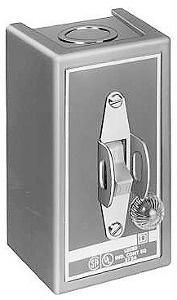

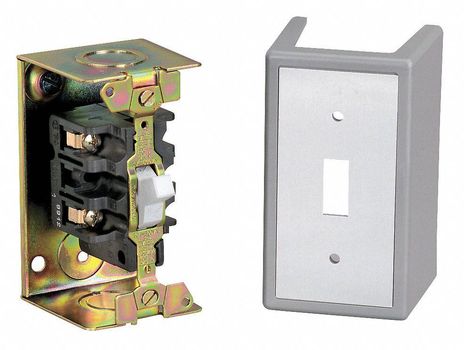

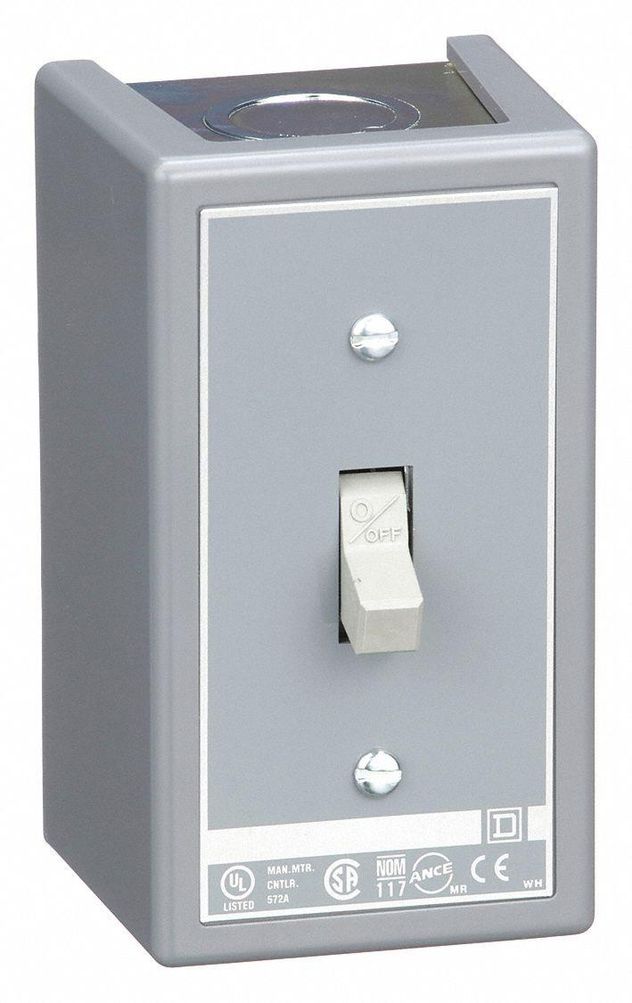

Square D 2510KG1A

Name: Square D 2510KG1A
Brand: Square D
SKU: CS1658513
Price: 147.52 USD
Availability: OutOfStock

SKU: CS1658513MPN: 2510KG1AUPC/EAN: 785901554486

Switch, manual, 30A, 2 pole, 3HP at 575VAC, single phase, toggle operated, red 115VAC indicator, NEMA 1 enclosure

$147.52

Unit

Available on backorder

Quantity

remove

add

Product Details

Single Unit Manual Switch

Line Rated Current: 30A* Motor Power HP: 3HP at 460V AC; 2HP at 230V AC, 115V AC; 3HP at 575V AC; 1HP at 90V DC; 2HP at 115V DC; 1.5HP at 230V DC* System Voltage: 600V AC, 230V DC* Poles Description: 2-Pole* Control Type: Toggle Switch* Number of Phases: 1-Phase* Local Signaling: Red Indicator* Motor Starter Type: Non-Reversing* Electrical Connection: Screw Clamp Terminals

In Rated Current	30 A
In Rated Current 1	30 A
Cable Entry	0.5” and 0.75” knock-outs (top and bottom)
Control Type	toggle
Control Type 1	toggle
Electrical Connection	screw clamp terminals
Motor Starter Type	non reversing
Motor Starter Type 1	non reversing
Network Number Of Phases	1 phase
Poles Description	2P
Product Certifications	UL listed file E42243 CCN NLRV# #CSA LR25490 class 3211 05
Product Or Component Type	Single Unit Manual Switch
Range Of Product	K
