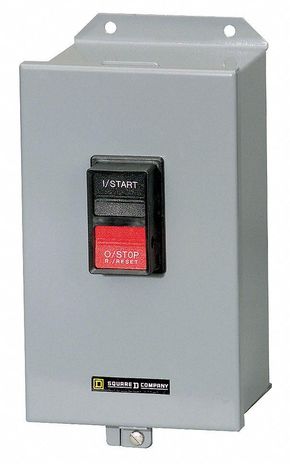

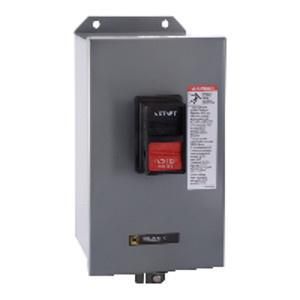

Square D 2510MCA1

Name: Square D 2510MCA1
Brand: Square D
SKU: CS1658376
Availability: OutOfStock

SKU: CS1658376MPN: 2510MCA1UPC/EAN: 785901619826

Manual starter, integral horsepower, NEMA M1, 600VAC, 2 pole, 3HP at 230VAC, 1 phase, no indicator, NEMA 12

Product Details

Integral Horsepower Manual Starter

Motor Power HP: 2 HP at 230V AC; 1 HP at 115V AC* Number of Phase: 1-Phase* System Voltage: 600V AC* Poles Description: 2-Pole* Control Type: Push-button* Local Signaling: No Indicator* Motor Starter Type: Non-Reversing* Electrical Connection: Pressure Wire Clamp

Auxiliary Contact Composition	without
Control Type	push-button
Control Type 1	push-button
Electrical Connection	pressure wire clamp
Motor Starter Type	non reversing
Motor Starter Type 1	non reversing
Nema Size	M-1
Number Of Thermal Units Required	1.0000
Poles Description	2P
Product Certifications	CSA LR60905 class 3211 05# #UL listed file E42243 CCN NLRV
Product Or Component Type	Manual Starter
Range Of Product	M
Thermal Overload Type	melting alloy
