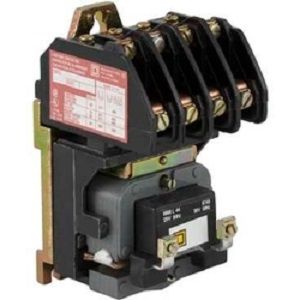

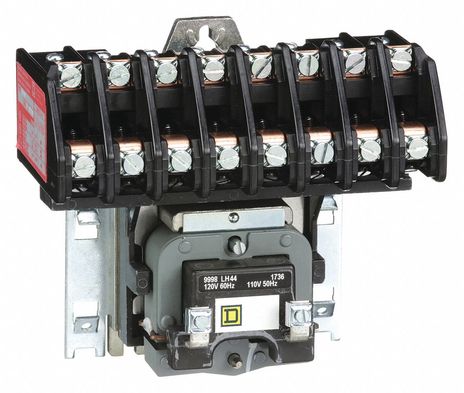

Contactor, Type L, multipole lighting, electrically held, 30A, 8 pole, 600V, 110/120VAC 50/60Hz coil, open style

Type L/LX Lighting Contactors - Available with current ratings from 30-800A

UL Listed and CSA certified to meet a variety of North American needs Class 8903 L/LX multi-pole lighting contactors are available in wide variety of enclosures suitable for lighting control. Features and benetits

• 30 Amp ballast lighting rating, 20 Amp tungsten lighting rating
• Electrically and mechanically held
• 50-60 Hz rated
• Two thru 12 pole versions
• Field-convertible contacts with N.O. and N.C. indicators (8 N.C. contacts maximum)
• Silver-Cadmium-Oxide double break contacts
• Available as open type or with following enclosures
• • NEMA Type 1 General Purpose + EMA Type 1 Flush Mounting General Purpose with Plaster Adjustment + NEMA Type 3R Rainproof Enclosure + NEMA Type 4 \& 4X Watertight Dust tight and Corrosion Resistant Glass-Polyester + NEMA Type 4 \& 4X Watertight, Dust tight Brushed Stainless Steel + NEMA Type 12 Dust tight and Drip tight for Industrial use
• Power Poles

  + Kits provided to add 30A power poles conveniently to existing Type L contactors when additional circuits are required + Type L contactors are supplied with mounting bracket, so adder poles may be conveniently mounted from the front by a single captive screw + Adder poles supplied with standard N.O. contacts which are convertible to N.C. for flexibility * UL Listed and CSA certified to meet a variety of North American needs
