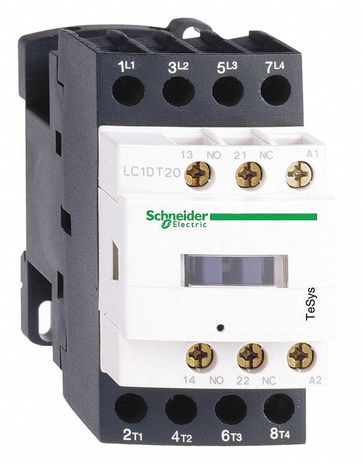

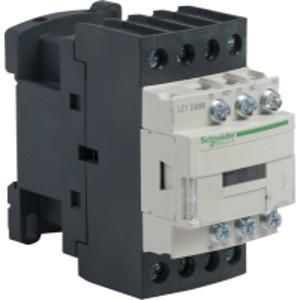

Square D LC1D1286G7
SKU: CS1648206MPN: LC1D1286G7
Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, \<\=440V, 25A, 120V AC 50/60Hz coil, lugs-ring terminals
Contact us for pricing and availability
Product Details
TeSys D Contactor- Number of Poles: 4-Poles- Pole Contact Composition: 2 NO + 2 NC- Rated Operational Current: 25A- Control Circuit Voltage: 120V AC 50/60 Hz- Non-Reversing
Attributes
| Ambient Air Temperature For Storage | -60-80 °C |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Coil Technology | without built-in suppressor module |
| Contactor Application | resistive load |
| Device Short Name | LC1D |
| Mechanical Durability | 15 Mcycles |
| Mounting Support | plate# #rail |
| Overvoltage Category | III |
| Pole Contact Composition | 2 NO + 2 NC |
| Poles Description | 4P |
| Pollution Degree | 3.0 |
| Product Certifications | UL# #CSA# #CCC# #EAC# #UKCA# #CB# #EU-RO-MR by DNV-GL |
| Product Name | TeSys D# #TeSys Deca |
| Product Or Component Type | contactor |
| Protective Cover | with |
| Range | TeSys# #TeSys Deca |
| Signalling Circuit Frequency | 25…400 Hz |
| Utilisation Category | AC-1 |
Specifications
| SKU | CS1648206 |
|---|---|
| MPN | LC1D1286G7 |
