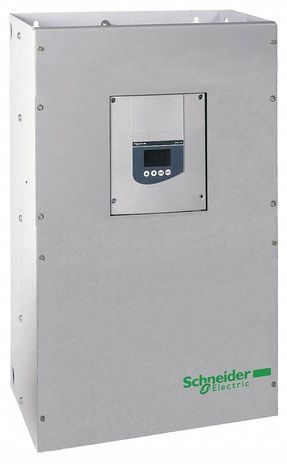

Square D ATS48C41Y

Name: Square D ATS48C41Y
Brand: Square D
SKU: CS136512
Availability: OutOfStock

SKU: CS136512MPN: ATS48C41Y

soft starter for asynchronous motor, Altistart 48, 361A, 208..690V, 90..400kW

Product Details

Altistart 22 Soft Start (ATS22)

For Asynchronous Motor* US Rated Supply Voltage: 208-690V* Motor Power Horsepower: 100-350 HP* Motor Power kW: 90-400 kW* Network Number of Phases: Triple-phase* External Bypass* Assembly Style: with Heat Sink

Ambient Air Temperature For Storage	-25-70 °C
Communication Data Link	serial
Communication Port Protocol	Modbus
Connector Type	1 RJ45
Device Connection	in the motor supply line
Device Short Name	ATS48
Discrete Input Number	5.0
Discrete Output Number	2.0000
Function Available	external bypass (optional)
Marking	CE
Operating Position	vertical ± 10 degree
Physical Interface	RS485 multidrop
Product Certifications	UL# #CSA# #C-Tick# #GOST# #TCF# #SEPRO# #CCC# #DNV# #NOM 117
Product Destination	asynchronous motors
Product Or Component Type	soft starter
Product Specific Application	heavy duty industry and pumps
Range Of Product	Altistart 48
Standards	EN/IEC 60947-4-2
Transmission Rate	4800, 9600 or 19200 bps
Utilisation Category	AC-53A
