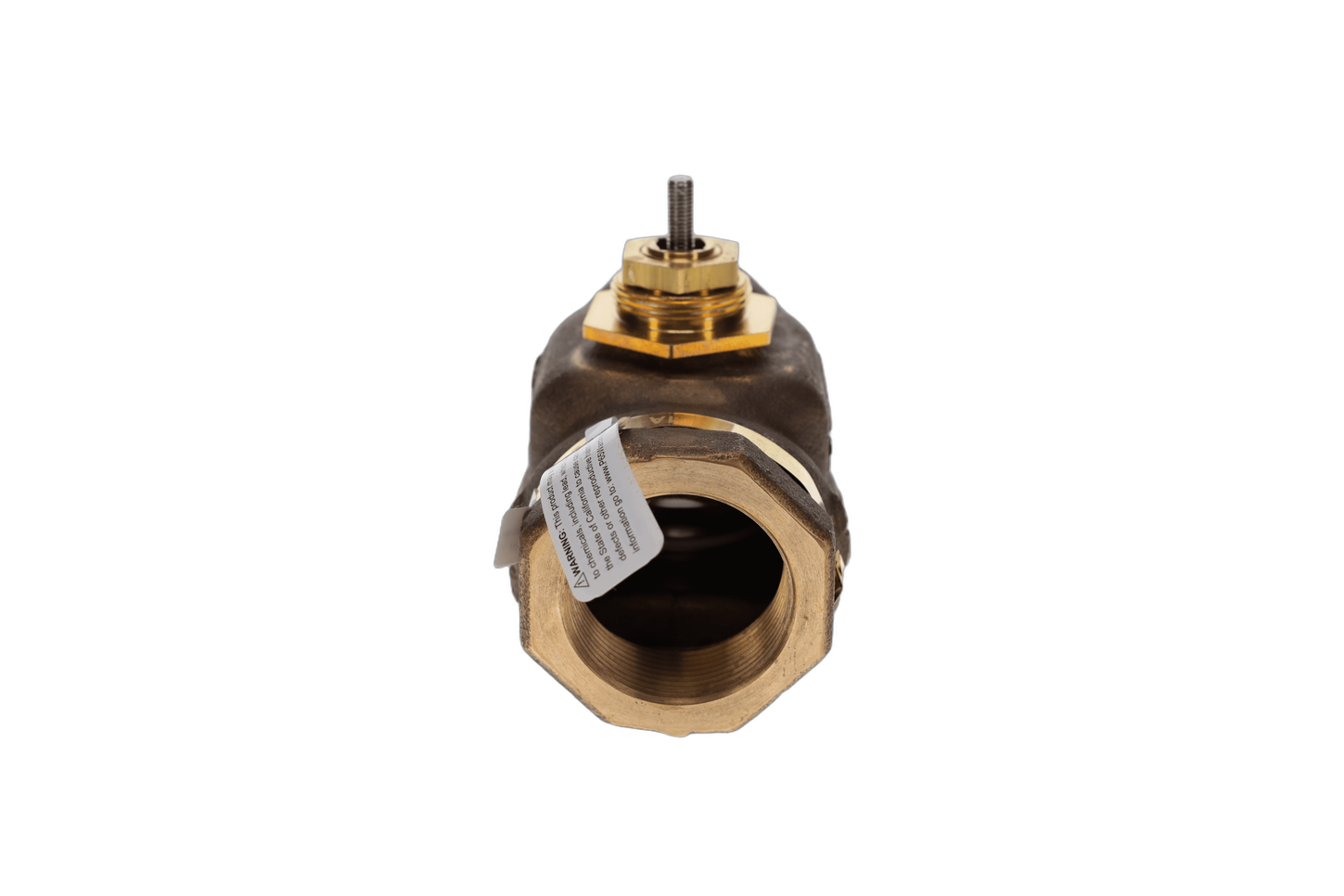

Schneider Electric VB-7263-0-4-10
SKU: CS130759MPN: VB-7263-0-4-10UPC/EAN: 711426473650
Venta, Globe Valve, 1-½ in, 2-way, straight threaded NPT, stem up closed, stainless steel trim with soft seats, 28 Cv
$430.22
Unit5+ Units Available at Factory - Ships Same/Next Business Day
Product Details
Valve Body (VB-7263-0-4-10):
- Body Size: 1-½ in
- Configuration: 2-Way
- Type: Globe
- Body Pattern: Straightway
- Connection: NPT
- Stem Flow Action: Stem up A closed
- Material Trim: Stainless Steel
- Flow Coefficient: 28 cv
- Control Media: Glycol 25 to 60%, Steam, Water
- Product Line: Schneider Electric
- Product Range: Venta
- Product Series: VB-7200
Product Alert: If manufactured after December 2011, please reference the following literature: VB-7000 General F-27651-1
Attributes
| Body Material | bronze |
| Operating Fluid Temperature | -7-171 °C |
| Product Or Component Type | valve |
| Saturated Steam Temperature | -7-171 °C |
| Satured Steam Inlet Pressure | 100 psi |
| Seat Leakage | Port A: Class IV (0.01 %) Port A: Class V |
| Seat Material | Port A: stainless steel 316 |
| Seating Seal Material | PTFE (polytetrafluoroethylene) |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54015_XXX |
Specifications
| SKU | CS130759 |
|---|---|
| MPN | VB-7263-0-4-10 |
| UPC/EAN | 711426473650 |
