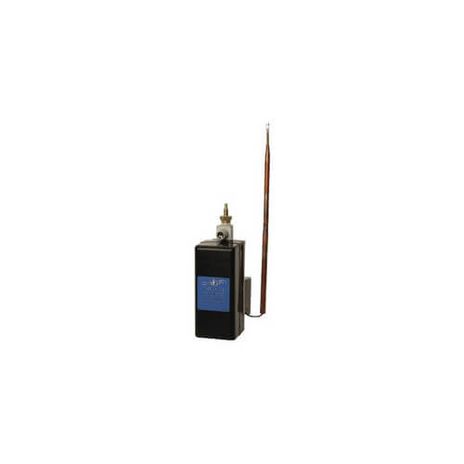

Johnson Controls T-5210-2002

TRANS 0/100C; “B” BULB

The T-5210 Pneumatic Temperature Transmitter measures temperature and converts this measurement to an air pressure signal that is transmitted to a pneumatic receiver, controller, or receiver-indicator. When used with a Dewcel (purchased locally), the T-5210 operates as a dew point transmitter.

Features:

• Element Style - Copper Bulb with 5-½ ft (1.2 m) Copper Capillary
• Provides an exact proportional relationship between the measured temperature and the transmitted signal
• Includes appropriate brackets for mounting to ductwork, walls, or directly to the hub of a duct flange, or separable well
• Operates in any position from a rigid, flat, mounting surface
• Requires a 0.007 in. restricted supply
