Turck BCF10-S30-VP4X-H1141
SKU: CS1177309MPN: BCF10-S30-VP4X-H1141Alternate Part #: 2506117UPC/EAN: 4047101089677
2506117 - CF, BARREL-FL, GEN., GEN.
$243.04
UnitAvailable on backorder
Product Details
Capacitive Sensor

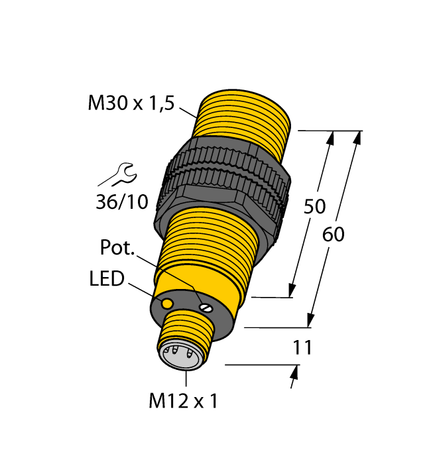

- M30 × 1.5 threaded barrel
- Plastic, PA12‐GF30
- Fine adjustment via potentiometer
- Increased EMI protection (even with high frequency equipment)
- Suited for highly viscous media
- DC 4-wire, 10…65 VDC
- Complementary contact, PNP output
- M12 × 1 connector
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | UL |
| Construction Size | M30 x 1.5 |
| Customs Tariff Number | 85365080900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270102 -/- Capacitive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Function | For highly viscous media |
| Housing Material | Plastic, PA12-GF30, PEI |
| Output Function | Complementary contact, PNP |
| Protection Class | IP67 |
| Rated Switching Distance | 10 mm |
Specifications
| SKU | CS1177309 |
|---|---|
| MPN | BCF10-S30-VP4X-H1141 |
| Alternate Part # | 2506117 |
| UPC/EAN | 4047101089677 |
