ACI A/6"

Name: ACI A/6"
Brand: ACI
SKU: CS1163341
Availability: OutOfStock

SKU: CS1163341MPN: A/6"Alternate Part #: 128351

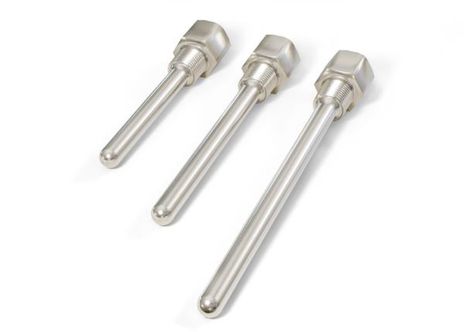

6” Thermowell, ½” NPT, 304 SS Welded

Product Details

6” Thermowell, ½” NPT, 304 SS Welded

Length	6”

Shank Type	Straight
Material Type	304 Series Stainless Steel
Tip Thickness	0.060” (1.524 mm) +/- 0.010” (0.254 mm)
Surface Finish	Polished to 16 RMS
Insertion Length	See Ordering Grid \| Tolerance: +/- 0.060” (+/- 1.524 mm)
Thermowell Hex Size	1.125” (28.57 mm)
Bore Inside Diameter	0.260” +/- 0.003” (6.60 mm +/- 0.0762 mm)
Shank Outside Diameter	0.375” (9.52 mm) +/- 0.010” (0.254 mm)
Calculated Burst Pressure	30,130 PSI (2077.39 Bar) Note 2: All of the theoretical pressure ratings above are for reference purposes only using a Safety Factor of 4
Pressure (100% Leak) Tested	100 PSI nominal @ Ambient Air Temperature
External “Process” Thread	½” MNPT - 14
Maximum Operating Temperature	700ºF (371ºC) (Weld Integrity due to Corrosion may occur above 700ºF)
Internal “Instrument” Thread	½” NPS
Maximum Allowable Working Pressure	6392 PSI (440.71 Bar) from -20ºF (-28.9ºC) to 100ºF (37.8ºC) Note 2: All of the theoretical pressure ratings above are for reference purposes only using a Safety Factor of 4
Allowable Stress (Factor of Safety \= 4)	15,000 PSI (1034 Bar) (Weld Joint Efficiency \= 0.80) Note 2: All of the theoretical pressure ratings above are for reference purposes only using a Safety Factor of 4
Tensile Strength (304 Stainless Welded Tube)	75,000 PSI @ Ambient Room Temperature Note 1: All maximum ratings have been calculated using the theoretical values of the materials being used
