Turck BI30U-CK40-AN6X2-H1141
SKU: CS1161568MPN: BI30U-CK40-AN6X2-H1141Alternate Part #: 1625820UPC/EAN: 4047101079975
1625820 - UPROX, RECT., DC, CON. M12
$191.14
UnitAvailable on backorder
Product Details
Inductive Sensor
With Extended Switching Distance
- Rectangular, height 40 mm
- Variable orientation of active face in 5 directions
- Plastic, PBT‐GF30‐V0
- High luminance corner LEDs
- Optimum view on supply voltage and switching state from any position
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Large coverage
- High switching frequency
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -10…+60 °C |

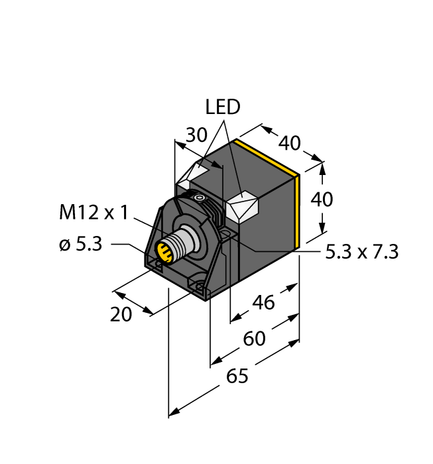

| Construction Size | 65 x 40 x 40 mm, CK40 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, PBT-GF20-V0, Black |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, NPN |
| Protection Class | IP68 |
| Rated Switching Distance | 30 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 0.250 kHz |
Specifications
| SKU | CS1161568 |
|---|---|
| MPN | BI30U-CK40-AN6X2-H1141 |
| Alternate Part # | 1625820 |
| UPC/EAN | 4047101079975 |
