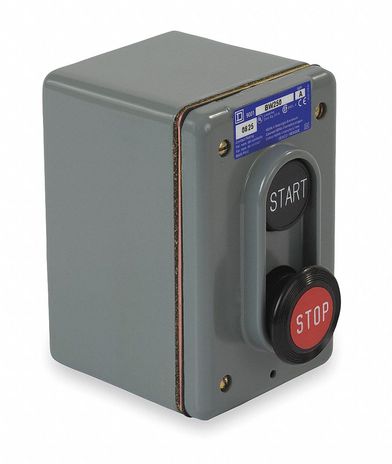

Square D 9001-BW250

Push Bttn Cntrl Statn 2NO/1NC Start/Stop

Push Button Control Station Number of Operators 2 Size 30 mm Legend Start/Stop Type of Operator Push Button with Mushroom Head Action Momentary / Momentary Contact Form 1NO/1NC Mechanical Interlock No NEMA Rating 4 Contact Rating 5A @ 600V AC/24V DC NEMA Contact Rating Designation B600/P600 IP Rating 66 Mounting Wall Hub ½ in to ¾ in NPT Height 3.6 in Width 2.76 in Depth 4.25 in Enclosure Material Cast Zinc Enclosure Color Gray Standards CE CSA Certified UL Listed
