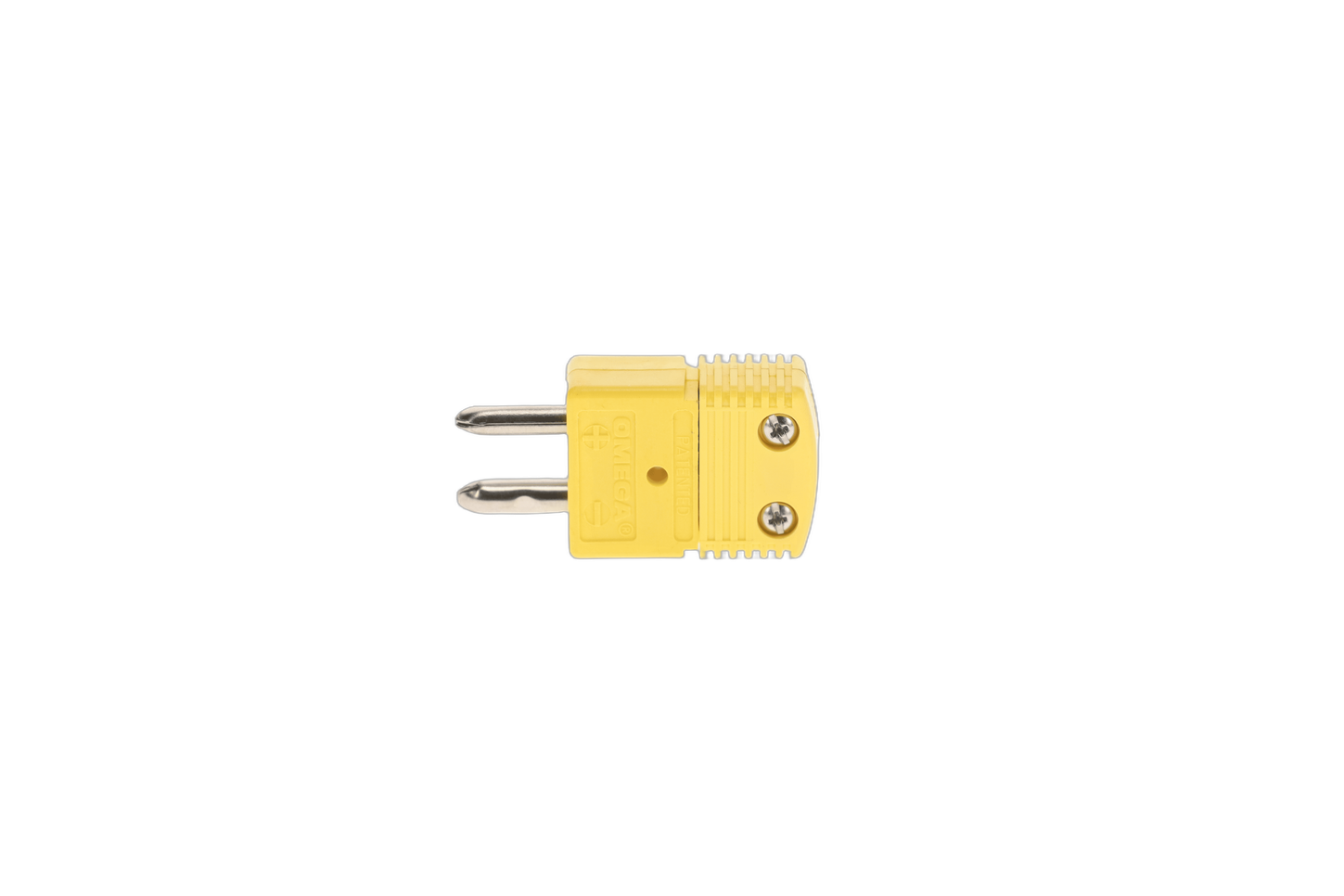

Omega OST-K-M
SKU: CS1061483MPN: OST-K-M
Standard Size Thermocouple Connectors without Write-On Tag
Product Details
- Economical Hollow-Pin Design
- Color -Coding for ANSI or IEC
- High Purity Thermocouple Alloy Pins and Sockets
- Accepts up to 14 Gauge Solid or Stranded Wire
Attributes
| Series ID | OST |
| Connector Options | No-Window |
| Country of Origin | United States |
| Thermocouple Type | K |
| Alloy Material (+) | Chromel |
| Alloy Material (-) | Alumel |
| Color Code Standard | ANSI |
| Electrical Connection | Standard Male Thermocouple Connector |
| Number of Pins Sockets | 2 |
| Wiring/Connector Table | Yellow |
| Operating Temperature, Max | 180 °C |
| Operating Temperature, Min | -29 °C |
Specifications
| SKU | CS1061483 |
|---|---|
| MPN | OST-K-M |
