Turck NI3-EG08K-Y1-H1341
SKU: CS1053875MPN: NI3-EG08K-Y1-H1341Alternate Part #: 1003720UPC/EAN: 4047101144451
1003720 - FERRITE, BARREL, NAMUR, CON. M
$108.50
Unit5 in stock
Product Details
Inductive Sensor

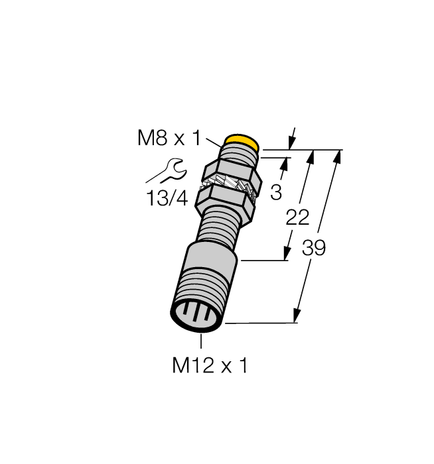

- Threaded barrel, M8 x 1
- Stainless steel, 1.4427 SO
- DC 2-wire, nom. 8.2 VDC
- Output acc. to DIN EN 60947-5-6 (NAMUR)
- M12 x 1 male connector
- ATEX category II 1 G, Ex zone 0
- ATEX category II 1 D, Ex zone 20
- SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
- SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |
| Construction Size | M8 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Stainless steel, 1.4427 SO |
| Mounting | Non-flush |
| Output Function | NAMUR |
| Protection Class | IP67 |
| Rated Switching Distance | 3 mm |
| Switching Frequency | 5.0 kHz |
Specifications
| SKU | CS1053875 |
|---|---|
| MPN | NI3-EG08K-Y1-H1341 |
| Alternate Part # | 1003720 |
| UPC/EAN | 4047101144451 |
