Process InstrumentationOmega

Omega CF-000-K-4-60-1

SKU: CS1023542MPN: CF-000-K-4-60-1

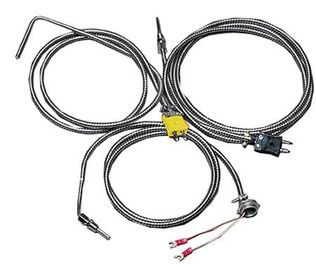

Extruder Thermocouple Probes with Compression Fittings

Omega CF-000-E-2-60-1, CF-000-E-2-60-2, CF-000-E-4-48-1-DUAL-UNG, CF-000-E-4-60-1, CF-000-E-4-60-1-DUAL-UNG, CF-000-E-4-60-2, CF-000-J-2-120-1, CF-000-J-2-48-2, CF-000-J-2-60-1, CF-000-J-2-60-1-UNGROUNDED, CF-000-J-2-60-2, CF-000-J-4-120-1, CF-000-J-4-120-2, CF-000-J-4-48-1, CF-000-J-4-60-1
$70.78
Unit
3 in stock
remove
add

Documents

Product Details

  • 3/16’ Diameter Probe with Pressure Sealing ⅛’ NPT Compression Fitting
  • Service Temperature to 480 °C (900°F) Except for Type T Thermocouple Stainless
  • A Wide Variety of Immersion Lengths, Styles and Mounting Arrangements Are Available
  • Flexible 0.275’ Stainless Steel Cable (60’ Standard)

Attributes

Bend Straight
Series ID CF-000-CF-090
Insulation Stainless Steel Armor Cable
Probe Type Extruders/Molding Thermocouple Probes
Cable Length 60 in
Probe Length 4 in
Junction Type Grounded
Cable Diameter 0.275 in
Cable Material Stainless Steel
Probe Diameter 0.1875 in
Number of Wires 2
Sheath Material 304 Stainless Steel
Country of Origin United States
Thermocouple Type K
Alloy Material (+) Chromel
Alloy Material (-) Alumel
Color Code Standard ANSI
Cold End Termination 1
Additional Features 2 Dual Elements
Electrical Connection Spade Lugs
Process Connection Size ⅛ in
Process Connection Type NPT Male
Temperature Probe Style Immersion Probe
Temperature Sensor Type Thermocouple
Process Temperature, Max 900 °C
Process Temperature, Min 0 °C
Armored Cable Length, Max 40 ft

Specifications

SKUCS1023542
MPNCF-000-K-4-60-1
