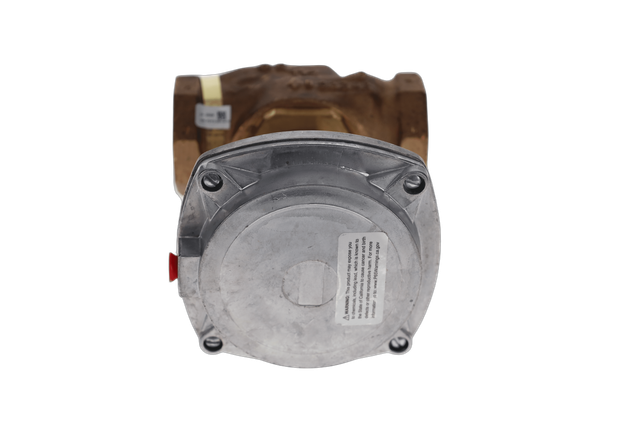

Schneider Electric VK-7213-301-4-07

SKU: CS1020346MPN: VK-7213-301-4-07

VB: 1 in, 2W, Globe, STR, NPT, UO, BR, 10 cv, 5 PSI, Act (MK-4601): Pneu, 2Pos/Prop, 3-6 PSIG, SR, NO, Air NPT, Linear, N1

Schneider Electric VK-7213-301-4-03, VK-7213-301-4-04, VK-7213-301-4-05, VK-7213-301-4-06, VK-7213-301-4-07, VK-7213-301-4-08, VK-7213-301-4-09, VK-7213-301-4-10, VK-7213-301-4-11, VK-7213-302-4-01, VK-7213-302-4-02, VK-7213-302-4-03, VK-7213-302-4-04, VK-7213-302-4-05, VK-7213-302-4-06
$627.45
Unit
Available on backorder
remove
add

Product Details

Valve Assembly:

  • Body Size: 1 in/li>* Configuration: 2-Way
  • Type: Globe
  • Body Pattern: Straightway
  • Connection: NPT
  • Stem Flow Action: Stem up A open
  • Material Trim: Brass
  • Flow Coefficient: 10 cv
  • Close-Off Pressure: 5 PSI
  • Actuator Type: Pneumatic
  • Control Signal: 2-Position (On/Off), Proportional
  • Control Spring Range: 3 to 6 PSIG
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally open
  • Leads and Connections: ⅛ in Air NPT
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 1

Assembly Components:

  • Valve Body: VB-7213-0-4-07
  • Valve Range: Venta
  • Valve Linkage: AV-401
  • Actuator: MK-4601

Attributes

Actuator linear
Ambient Air Temperature For Operation -28.8-104.4 °C
Ambient Air Temperature For Storage -40-104.4 °C
Body Material bronze
Control Type manual override with 5/32 allen wrench
Diaphragm Effective Area 11 in²
Ip Degree Of Protection IP10
Material die cast aluminium: housing
Operating Fluid Temperature -7-138 °C
Product Destination globe valve
Product Or Component Type valve-actuator assembly
Saturated Steam Temperature -7-138 °C
Satured Steam Inlet Pressure 35 psi
Seat Leakage Port A: Class IV (0.01 %) Port A: Class V
Seat Material Port A: bronze
Seating Seal Material Port A:EPDM (ethylene propylene diene monomer)
Targeted Region North America.
Taxoclass Id PTC_D54040_XXX

Specifications

SKUCS1020346
MPNVK-7213-301-4-07
