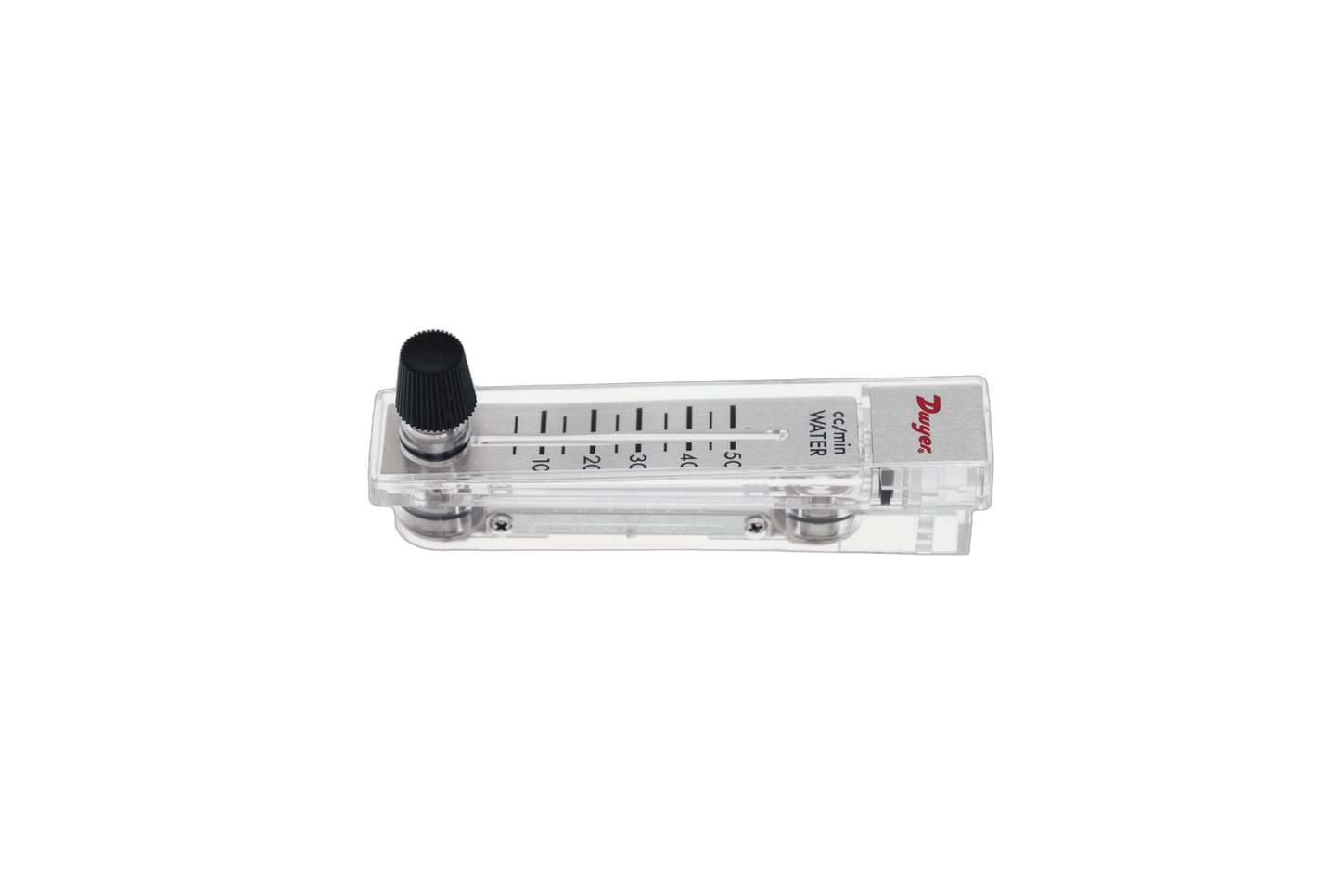

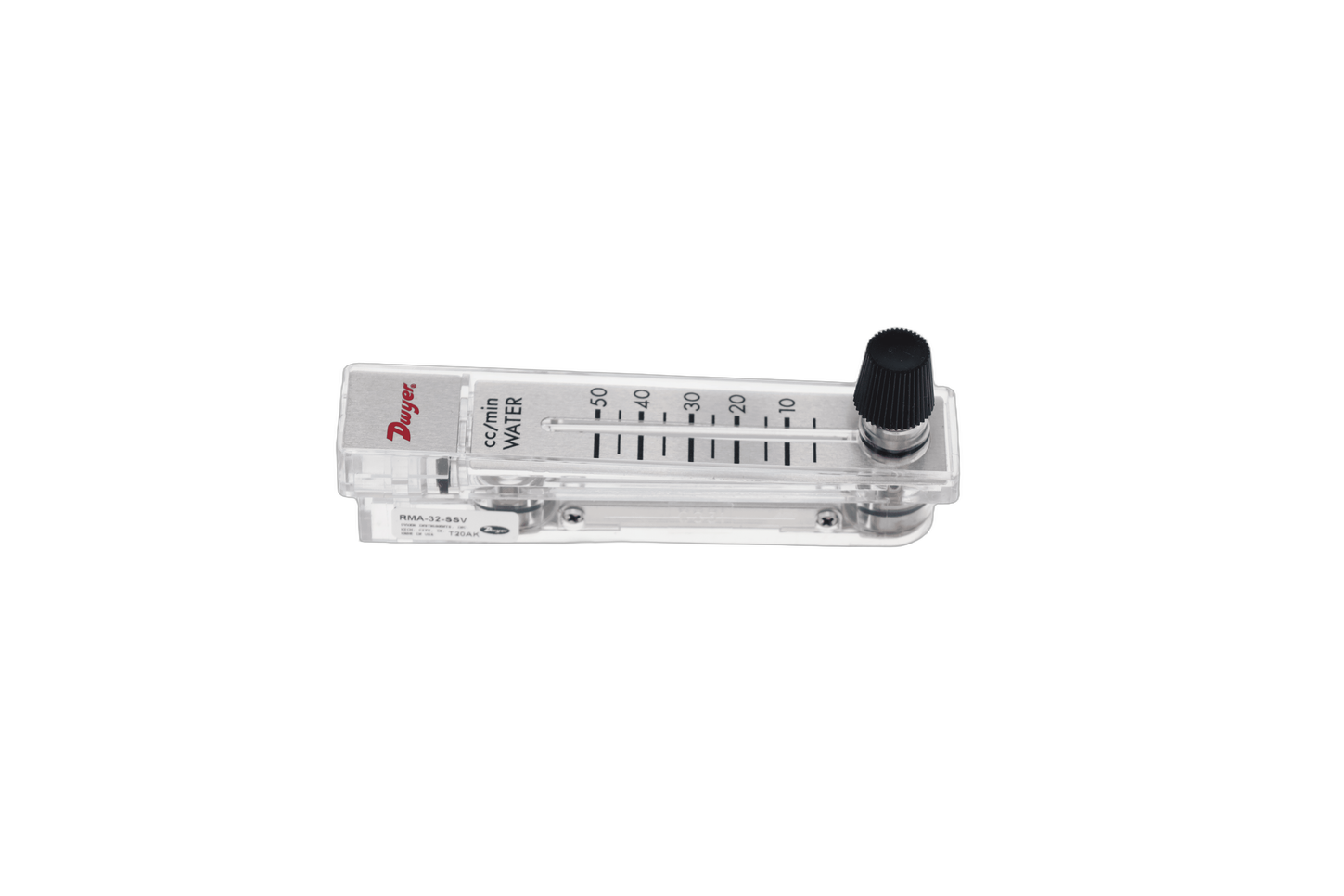

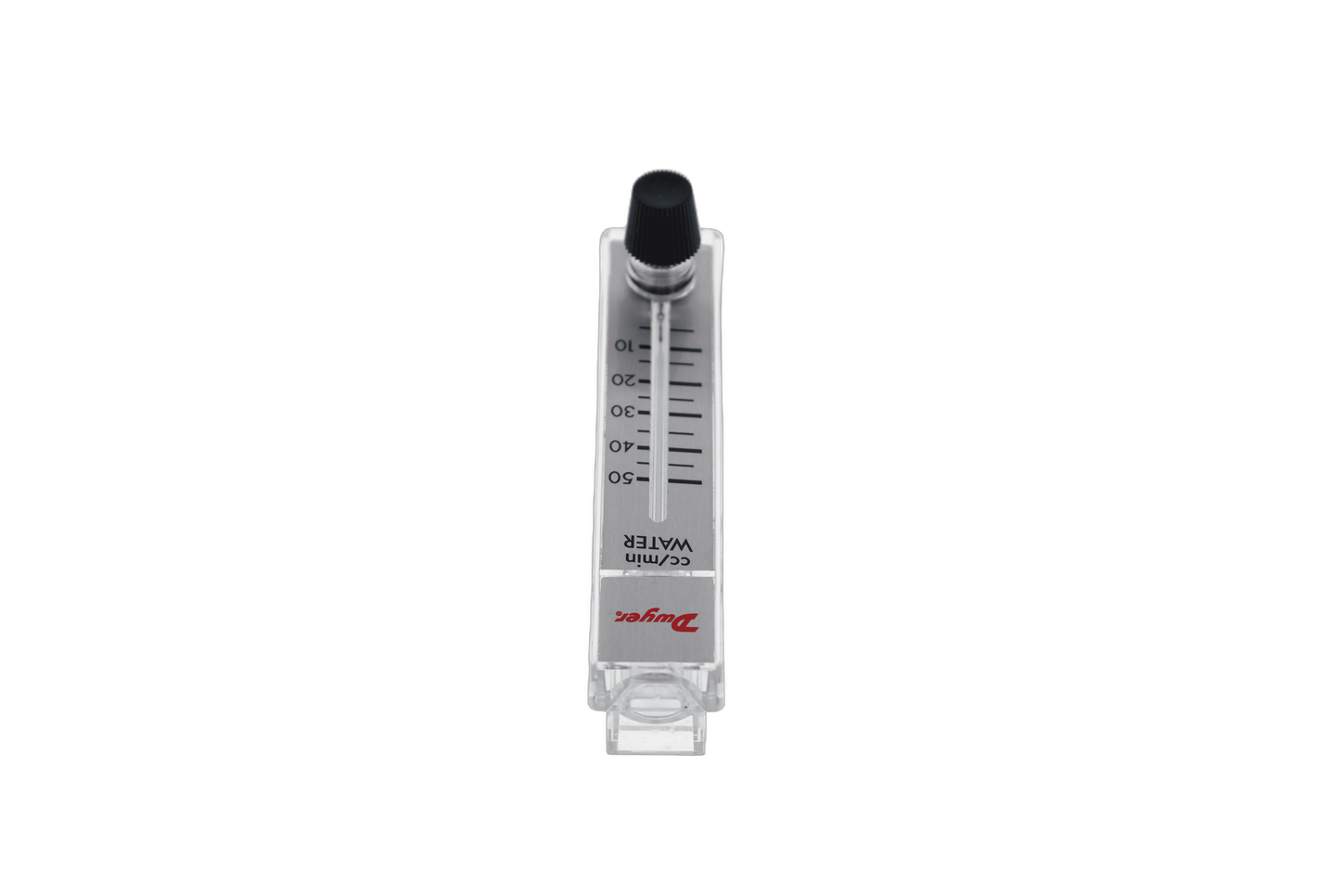

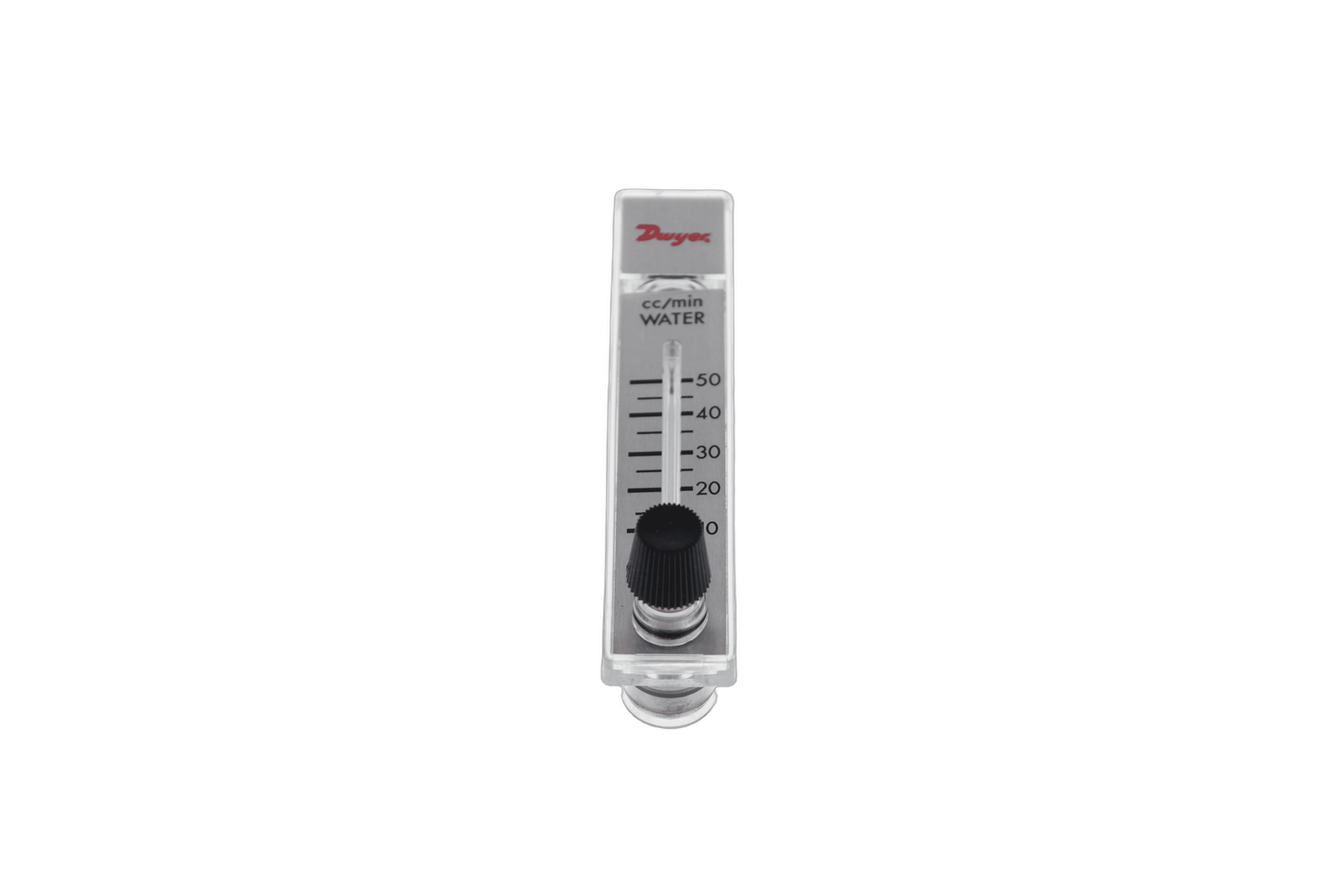

Dwyer RMA-32-SSV
SKU: CS1017071MPN: RMA-32-SSVAlternate Part #: 116210-30
RMA-32-SSV 5-50 CC/MIN WATER
$83.83
Unit26 in stock
Product Details
Flowmeter, range 5-50 cc/min water.
Attributes
| Accuracy | RMA: 4%; RMB: 3%; RMC: 2% of FS. |
| Caution | Dwyer® Rate-Master® flowmeters are designed to provide satisfactory long term service when used with air, water, or other compatible media. Refer to factory for information on questionable gases or liquids. Caustic solutions, anti-freeze (ethylene glycol) and aromatic solvents should definitely not be used. |
| Commodity Code | 5601 |
| Compliance | Meets the technical requirements of EU Directive 2011/65/EU (RoHS II). |
| Pressure Limit | 100 psi (6.9 bar). |
| Process Connection | RMA: ⅛”; RMB: ¼”; RMC: ½” female NPT. |
| Service | Compatible gases and liquids. |
| Wetted Material | Body: Polycarbonate; O-ring: Neoprene and Buna-N; Metal parts: SS; Float: SS, black glass, aluminum, K monel, tungsten carbide depending on range. |
Specifications
| SKU | CS1017071 |
|---|---|
| MPN | RMA-32-SSV |
| Alternate Part # | 116210-30 |
