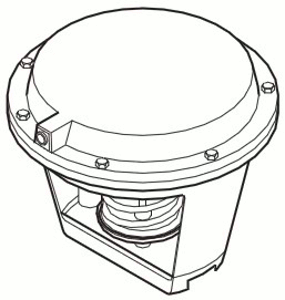

Schneider Electric VK4-9313-812-5-15

SKU: CS1007839MPN: VK4-9313-812-5-15UPC/EAN: 711426494754

VB: 5 in, 3W Mix, Globe, FLG, UC, BR, 290 cv, 15 PSI, Act (MK-8911): Pneu, Prop, 5-10 PSIG, SR, NC, Air NPT, Linear, N1, PP

Schneider Electric VK4-9313-802-5-12, VK4-9313-802-5-13, VK4-9313-802-5-14, VK4-9313-803-5-13, VK4-9313-803-5-14, VK4-9313-812-5-15, VK4-9313-812-5-16, VK4-9313-813-5-15, VK4-9313-813-5-16
$6,900.48
Unit
Available on backorder
remove
add

Product Details

Valve Assembly:

  • Body Size: 5 in
  • Configuration: 3-Way Mixing
  • Type: Globe
  • Connection: Flanged
  • Stem Flow Action: Stem up, mixing closed A to AB
  • Material Trim: Brass
  • Flow Coefficient: 290 cv
  • Close-Off Pressure: 15 PSI
  • Actuator Type: Pneumatic
  • Control Signal: Proportional
  • Control Spring Range: 5 to 10 PSIG
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Up/Retract A closed
  • Leads and Connections: ⅛ in Air NPT
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 1

Assembly Components:

  • Valve Body: VB-9313-0-5-15
  • Valve Linkage: AV-496
  • Actuator: MK-8911
  • Actuator Comment: Comes with a positive positioner (AK-42309-500)
  • Positive Positioner: AK-42309-500

Product Alert: Not for use with steam.

Attributes

Actuator linear
Ambient Air Temperature For Operation -28.8-104.4 °C
Ambient Air Temperature For Storage -40-104.4 °C
Body Material cast iron
Control Type manual override with 5/32 allen wrench
Diaphragm Effective Area 100 in²
Ip Degree Of Protection IP10
Material die cast aluminium: housing
Operating Fluid Temperature 4-149 °C
Product Destination globe valve
Product Or Component Type valve-actuator assembly
Seat Leakage Port A: Class III (0.1 %)
Seat Material Port A: bronze
Targeted Region North America.
Taxoclass Id PTC_D54040_XXX

Specifications

SKUCS1007839
MPNVK4-9313-812-5-15
UPC/EAN711426494754
